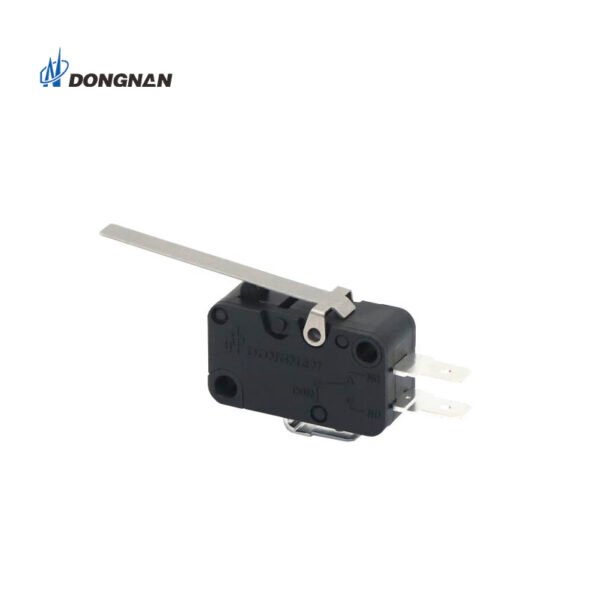

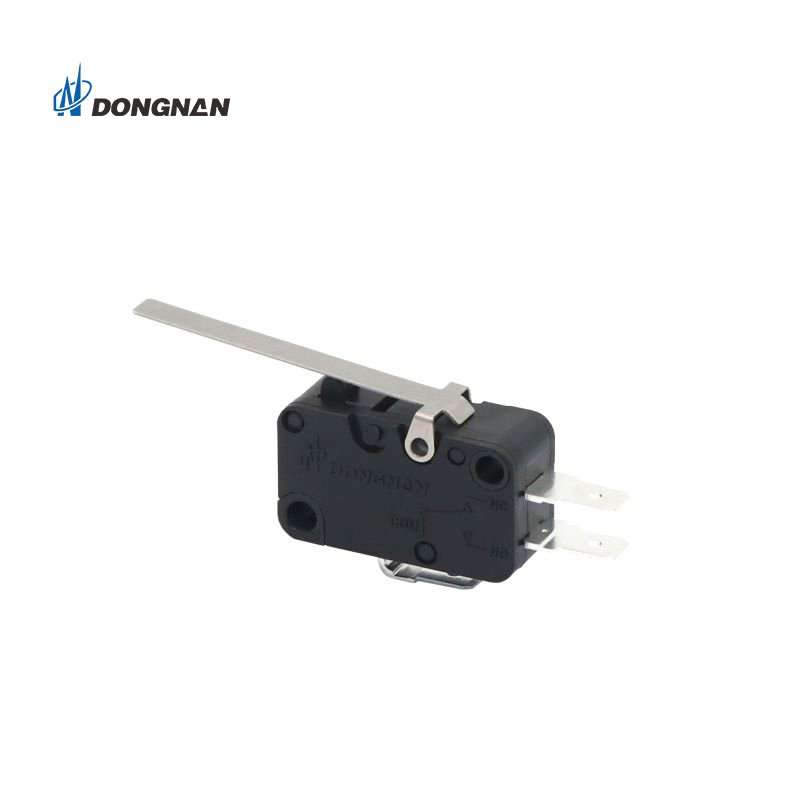

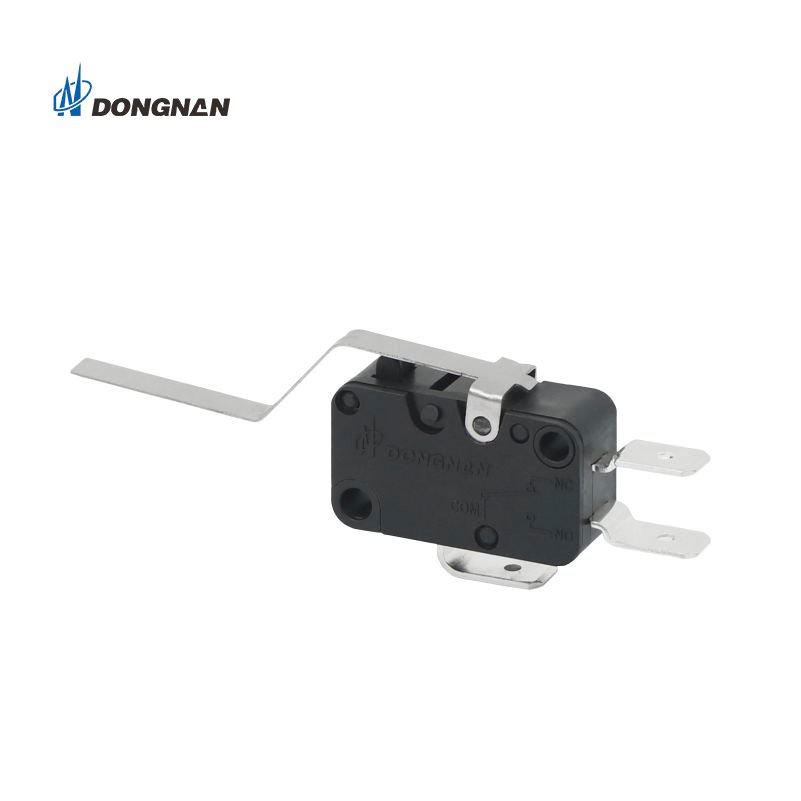

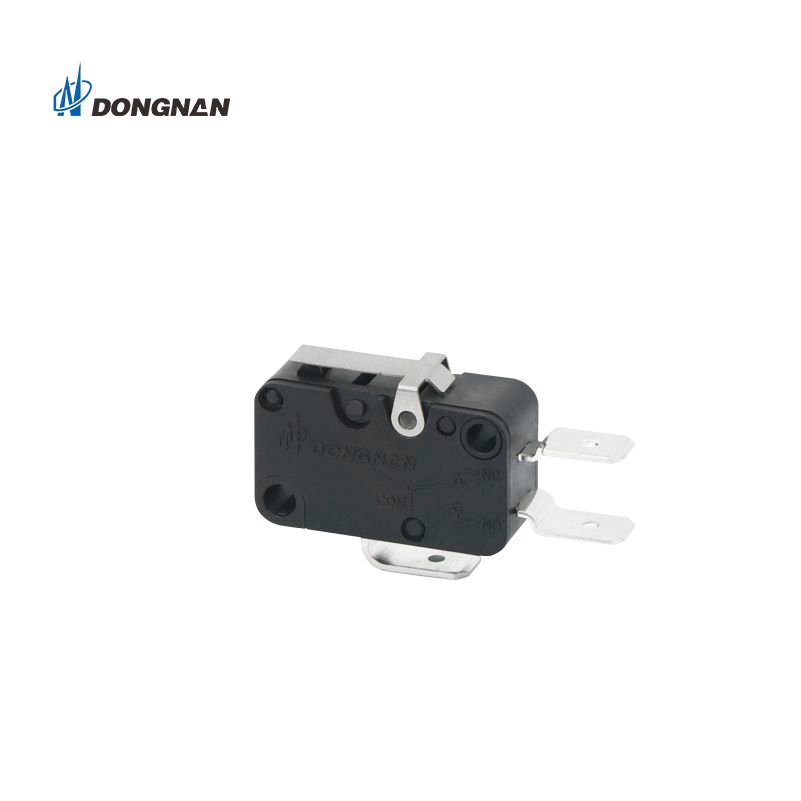

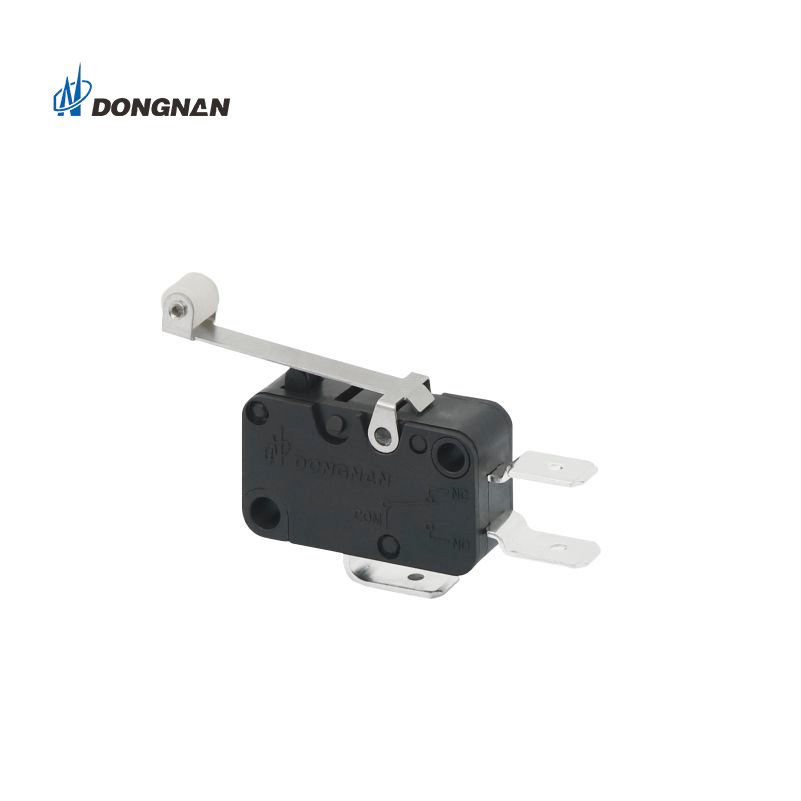

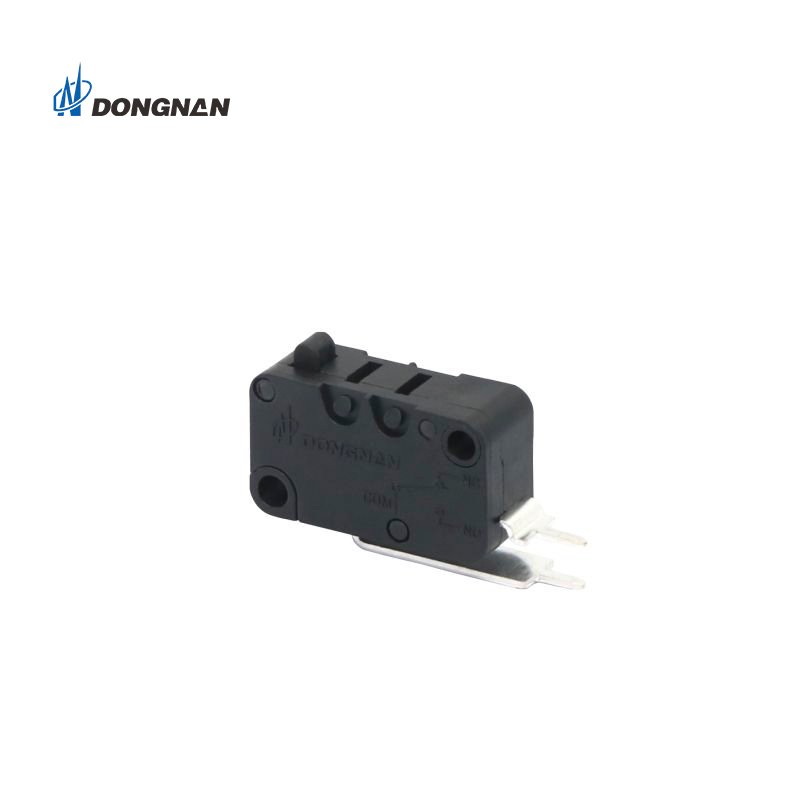

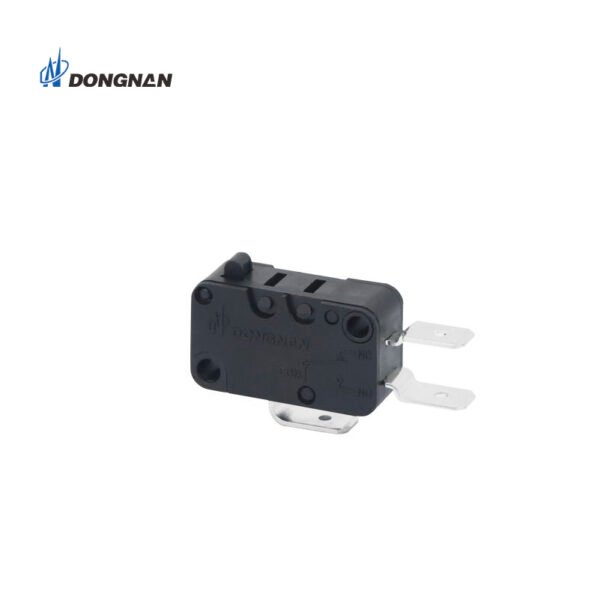

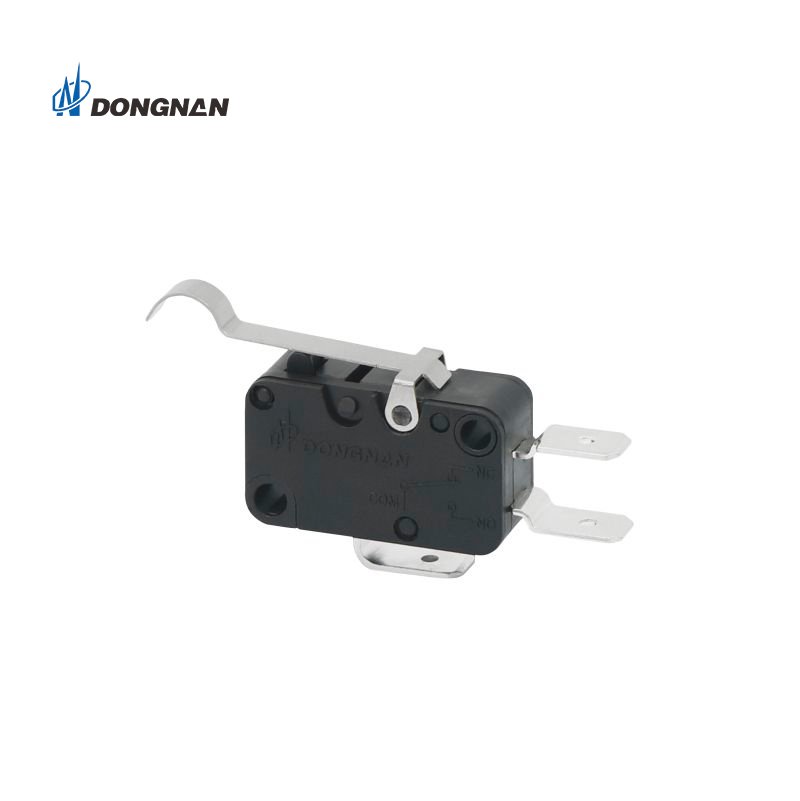

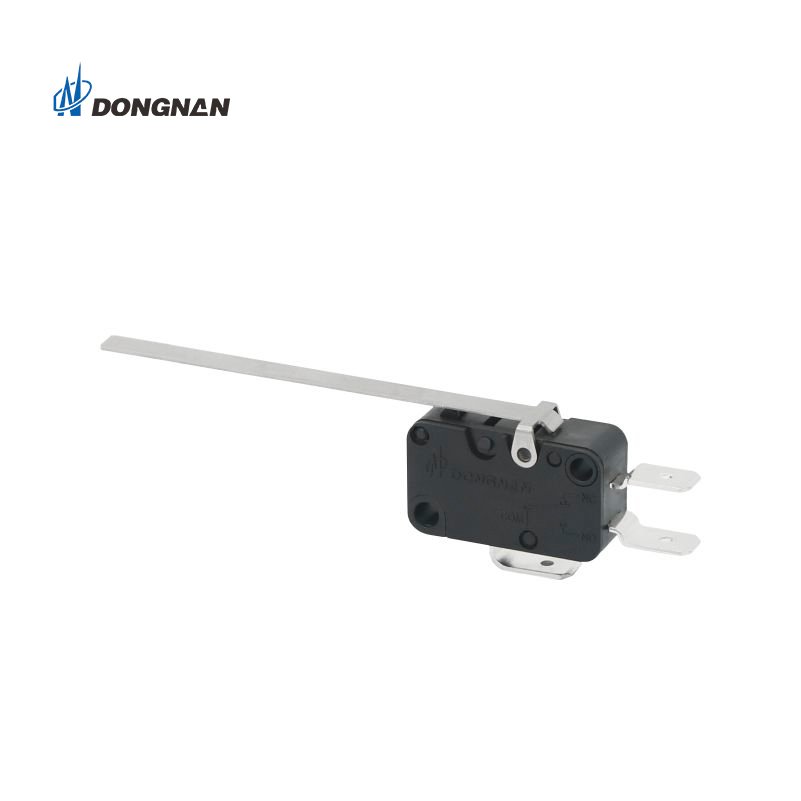

MS10 Washing Machine Micro Switch Low Operating Force Snap Action
Share This Page

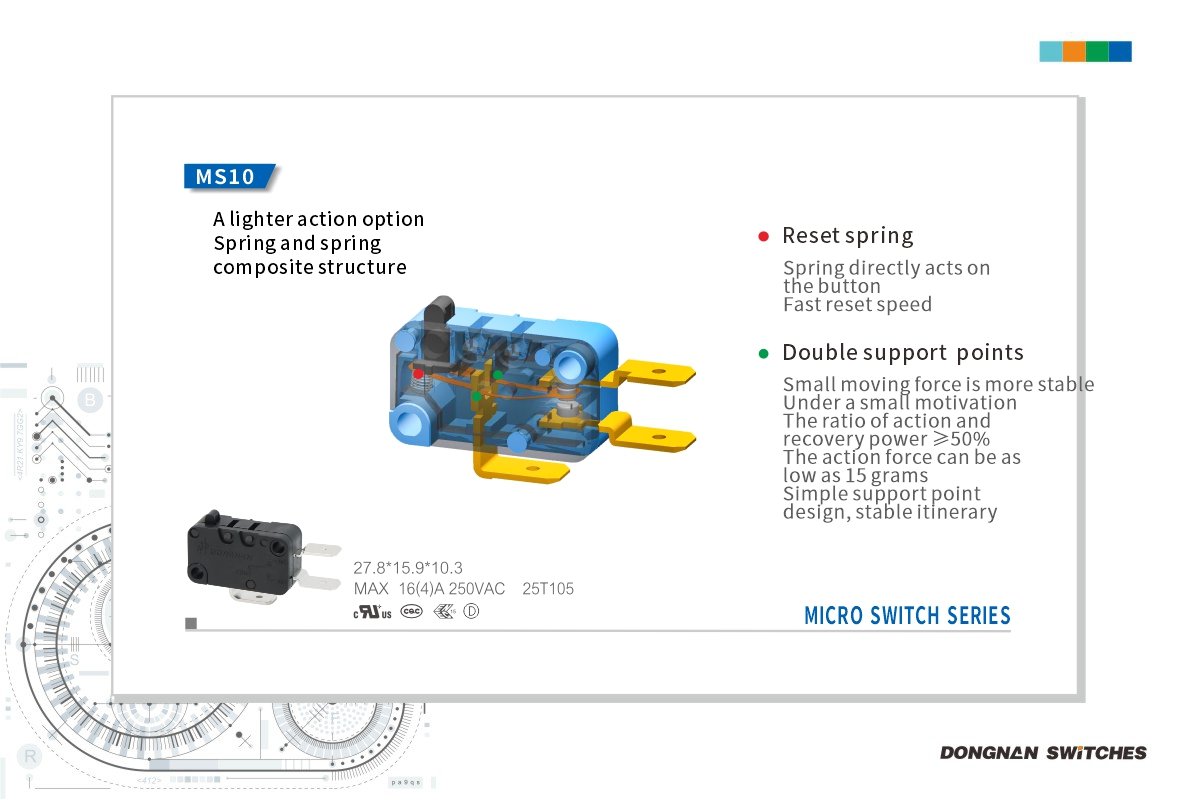

Product Features
-Long life, high reliability
-Low operating force stable performance.
-A variety of contact terminals
-A variety of levers.
-A variety of temperatures degrees
Product Parameters
| Item | Value |
| Environment temperature | -40~+125ºC |
| Operating speed | 30mm-600mm/s(No lever) |
| Operating Frequency | Mechanical 60 cycle/min; Electrical 25 cycles/min |
| Insulation resistance | ≥ 100MΩ(500VDC) |
| Contact resistance | ≤50mΩ |
| (Test voltage) Between terminals of the same polarity | AC1000V,50/60Hz,1min |
| (Test voltage) Between current-carrying metal parts and ground (case),and between each terminal and non-current-carrying metal parts. | AC1500V,50/60Hz,1min |
| Vibration resistance | 10-55Hz,1.5mm Double amplitude |
| Shock resistance | endurance:1000m/s2(approx.100G)max Wrong action:300m/s2(approx.30G)max |
| Degree protection provided by enclosure | IEC IP40 |
| Electrical life | ≥10,000 cycles or ≥50,000c cycles |
| Mechanical life | ≥1000,000 cycles |
Application
The micro switch is installed in the water tank of the dishwasher, which can detect the change in water level in the tank in real time. When the water level reaches the set overflow level, the micro switch will be triggered quickly to turn on the power of the water pump. Excess water is removed from the dishwasher to prevent safety hazards caused by overflow. The real-time monitoring and control of the dishwasher overflow by the micro switch can avoid damage to the appliance caused by the high water level, thus prolonging the service life of the dishwasher and reducing the maintenance cost of the family.
MS10 also has connector micro switch which is easy to install and can directly connect devices, saving wiring and man-hour.
