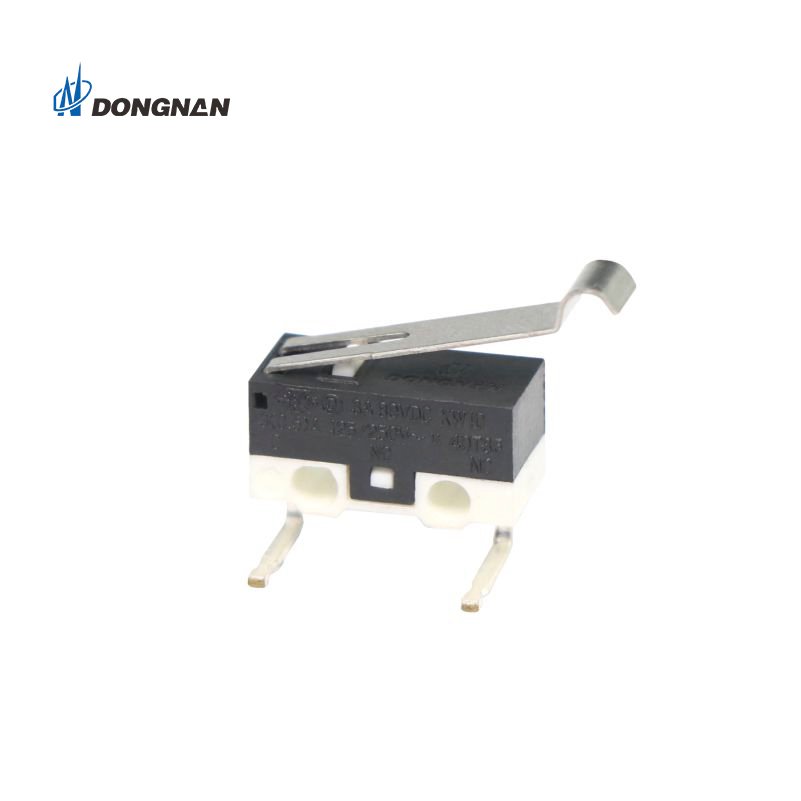

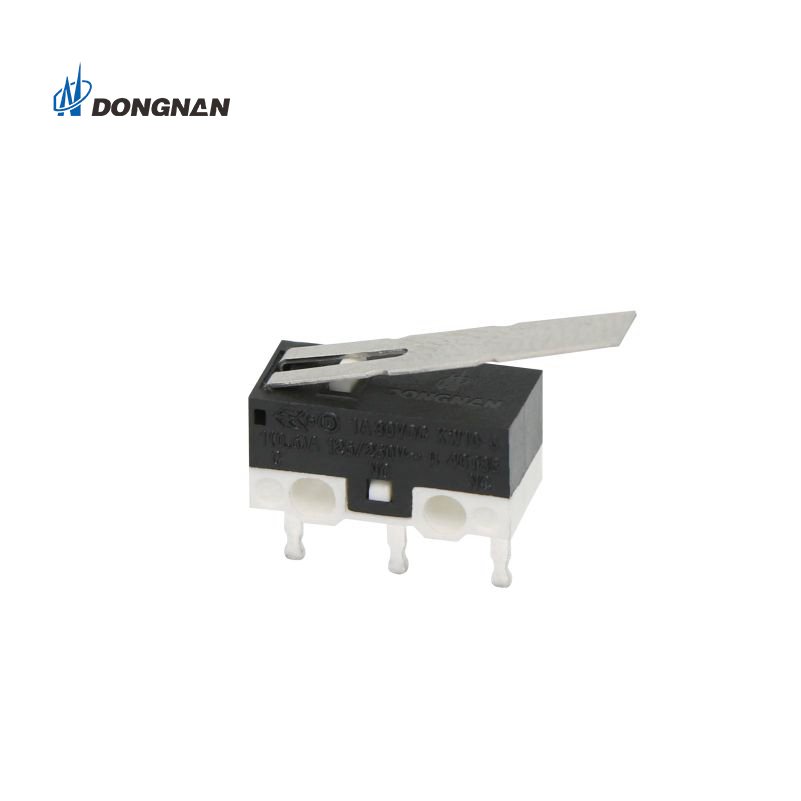

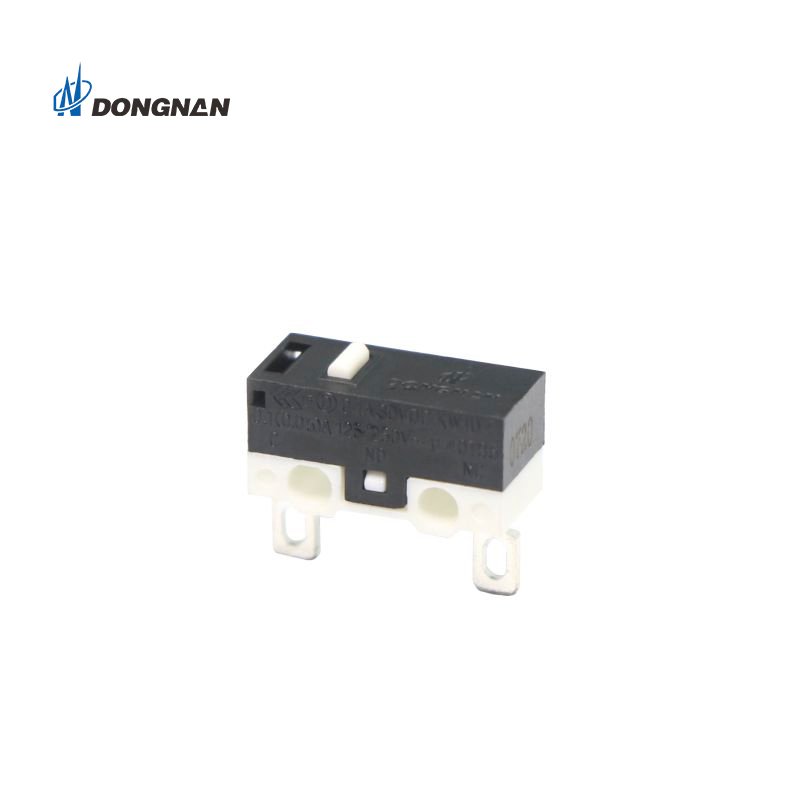

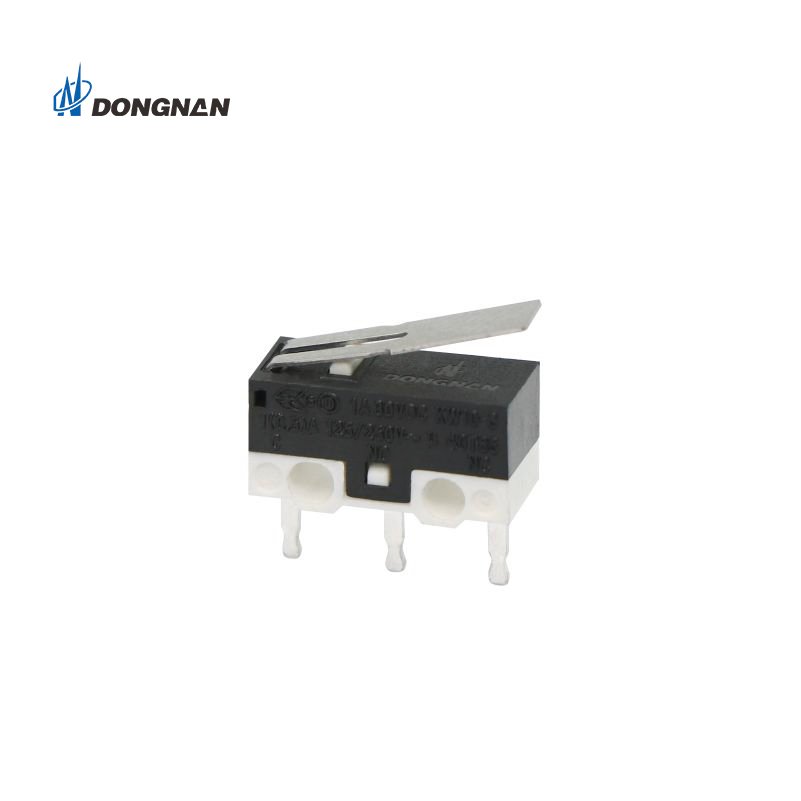

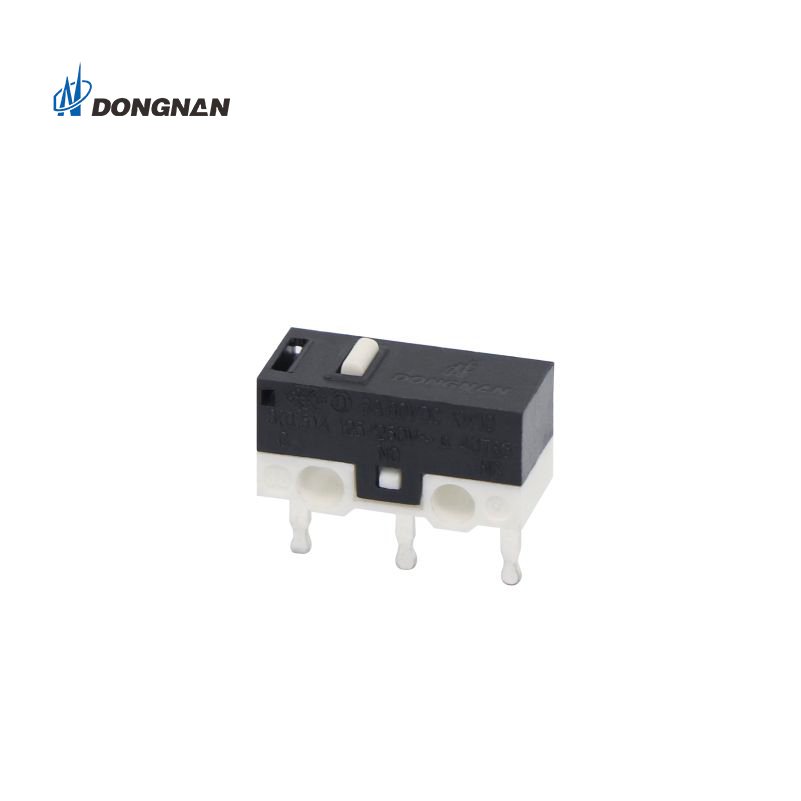

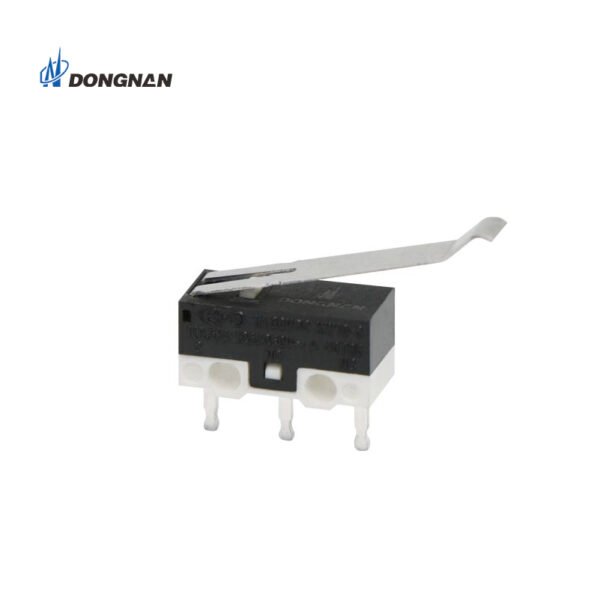

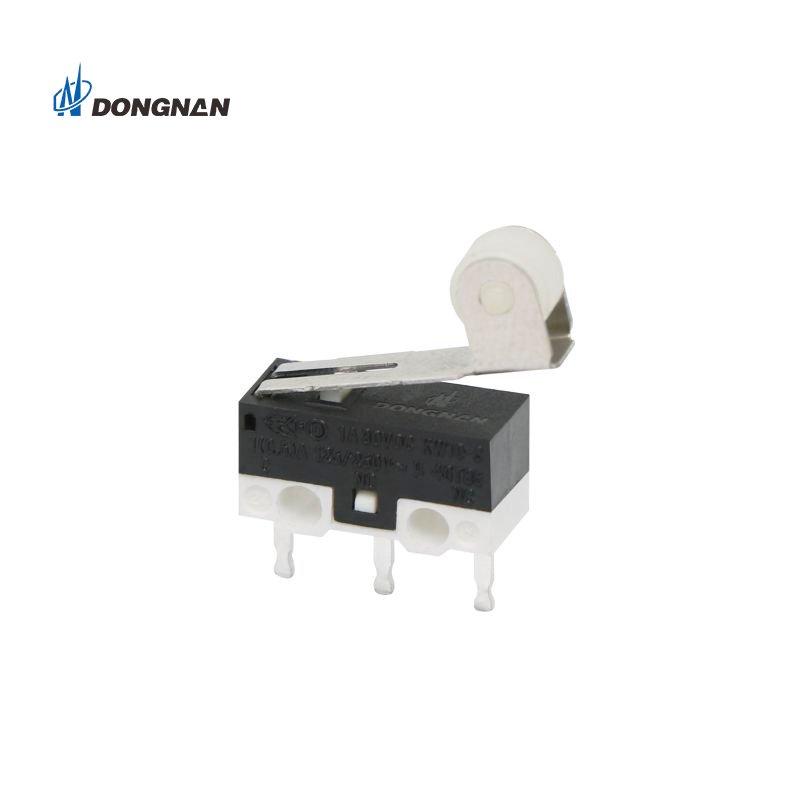

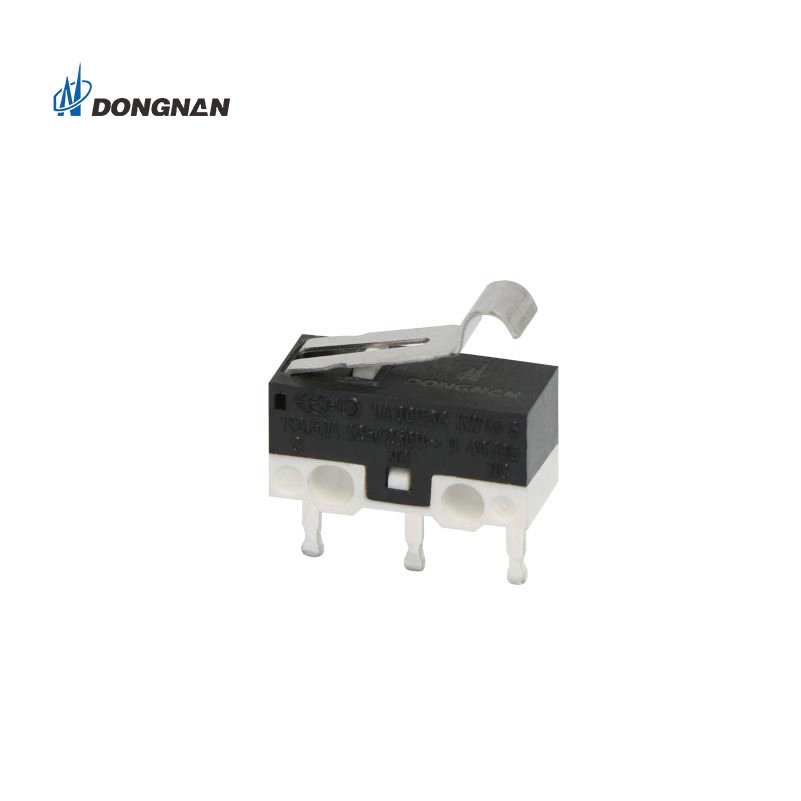

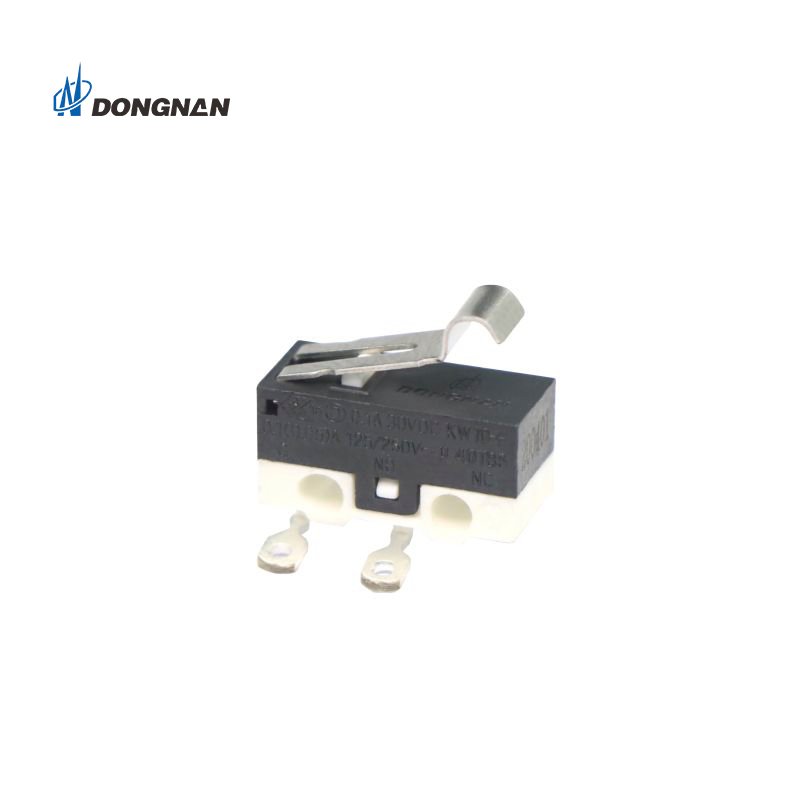

DONGNAN KW10 Vacuum Cleaner Subminiature Snap Action Switch 250VAC
-Action sensitive subminiature switch
-Mini-type,big current.Characteristic:small contact gap, quick action,high sensitivity and small operating travel.
Share This Page

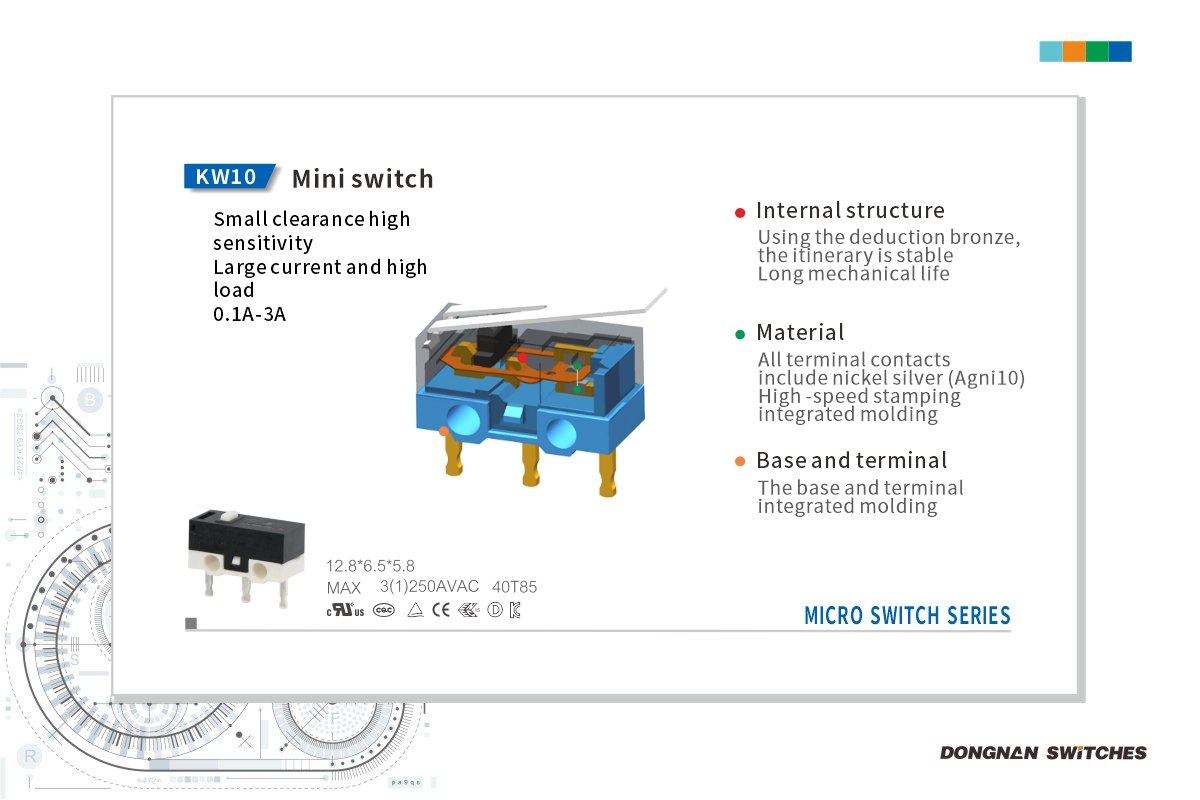

Product Features
-Action sensitive subminiature switch
-Mini-type,big current.Characteristic:small contact gap, quick action,high sensitivity and small operating travel.
-Long life
-A variety of contact terminals
– A variety of levers
-Widely used in home appliance,audio video device,computer,office automation equipment,communication equipment, etc.
Product Parameters
| Item | Value |
| Operating speed | 1mm~500mm/s (Related with actuator forms) |
| Operating frequency | Mechanical 60 cycles/min; electrical 25 cycles/min |
| Insulation resistance | ≥ 100MΩ(500VDC) |
| Contact resistance | OF>0.75N:≤30mΩ
OF≤0.75N:≤50mΩ KW10-D,E,F type:≤1000mΩ |
| (Test voltage) Between terminals of the same polarity | AC600V , 50/60Hz , 1min |
| (Test voltage) Between current-carrying metal parts and ground(case), and between each terminal and non-current-carrying metal parts. | AC1000V , 50/60Hz , 1min |
| Vibration resistance | 10~55Hz , 1.5mm Double amplitude |
| Shock resistance | Malfunction:300m/s2(approx.30G)max |
| Weight | Approx.0.6g(No lever) |
| Life | Mechanical ≥ 1,000,000 cycles
Electrical ≥ 10,000 cycles |
| Safety approvals | UL,CUL,TUV,ENEC,DEMKO,CE,EK,CQC |
Application
As a kind of smart home equipment, the performance and function of the sweeper directly affect the user’s experience. The stable structure and rapid response ability of the KW10 micro switch provide a reliable guarantee for the sweeper. In the use of wall sensors, KW10 microswitch is able to detect walls and other obstacles in time, avoiding collision and damage to the sweeper in the process of sweeping and improving the intelligence of the sweeper.
Its stable structure and rapid response capability enable the sweeper to plan the sweeping route more intelligently, improve the sweeping efficiency, and provide users with a more convenient home cleaning experience.
