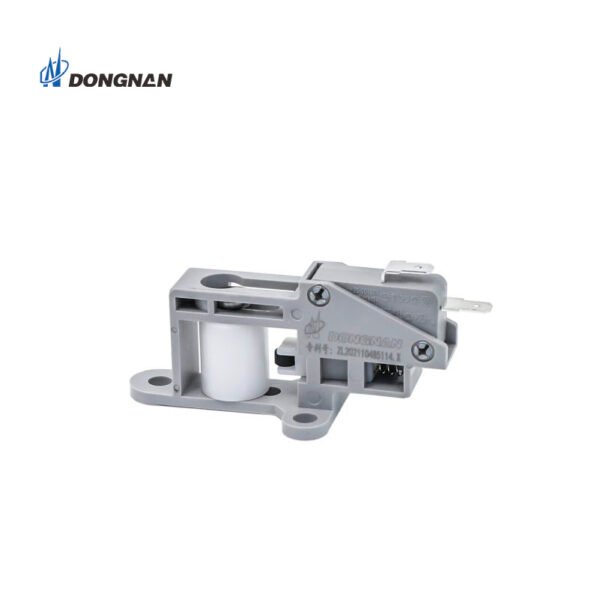

Small Micro Switch Assembly For Clothes Hanger KW3A-G
Adopting a simple structure and multi-roller design, this KW3A-G clothes hanger switch can minimize the wear and tear of the wire to the metal parts during the sliding process, thus greatly prolonging the service life. It is specially designed for electric clothes hanger. And it has obtained several utility model patents and invention patents.
Share This Page
Product Features
-Reliable product performance, no abnormal sound during the action
-Small size, suitable for random installation at all angles.
-Product structure is simple,easy to install and disassemble.
Product Parameters
| Item | Value |
| Operating speed | 0.1mm~1m/s (Related with actuator forms) |
| Operating frequency | Mechanical 60 cycles/min; electrical 25 cycles/min |
| Insulation resistance | ≥ 100MΩ(500VDC) |
| Contact resistance | ≤30mΩ(Initial value) |
| (Test voltage) Between terminals of the same polarity | AC1000V , 50/60Hz , 1min |
| (Test voltage) Between electrification metal parts and case, and between connect terminal and non electrification metal parts. | AC1500V , 50/60Hz , 1min |
| Vibration resistance | 10~55Hz , 1.5mm Double amplitude |
| Shock resistance | Destruction:OP>0.5N:1000m/s2(approx.100G)max OP≤0.5N:400m/s2(approx.40G)max Malfunction:OP>0.5N:200m/s2(approx.20G)max OP≤0.5N:100m/s2(approx.10G)max |
| Weight | Approx.25g(No lever) |
| Life | Mechanical ≥ 2,000,000 cycles Electrical ≥ 50,000 cycles |
| Safety approvals | UL,TUV,CE,CQC |
Application

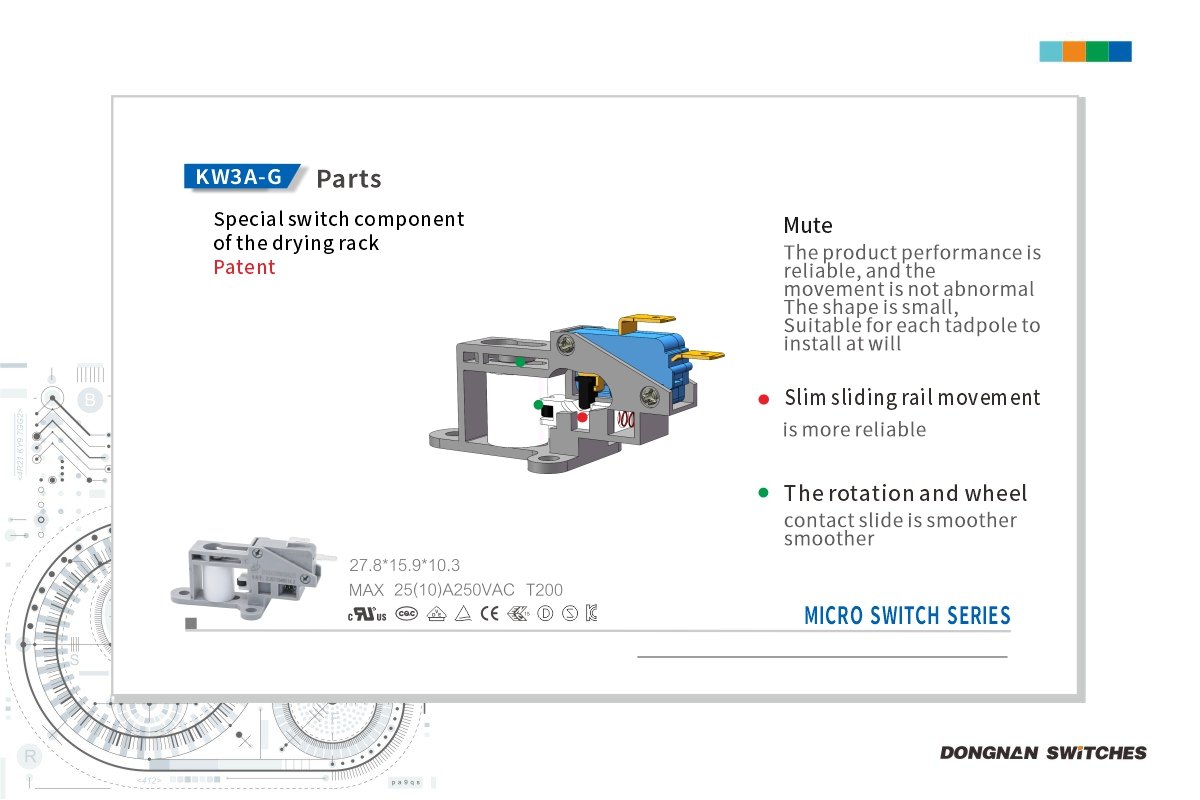

The KW3A-G electric clothes hanger switch assembly is tailor-made for the electric clothes hanger industry. The structure is light and simple, and the installation is convenient. Eliminate the noise generated by the steel wire in the sliding process and increase the service life.
After the research and development of this switch was completed, DONGNAN applied for an invention patent. It is a rare clothes drying rack switch in the home appliance industry. Its internal pulley structure makes using the clothes drying rack more labor-saving and convenient.
