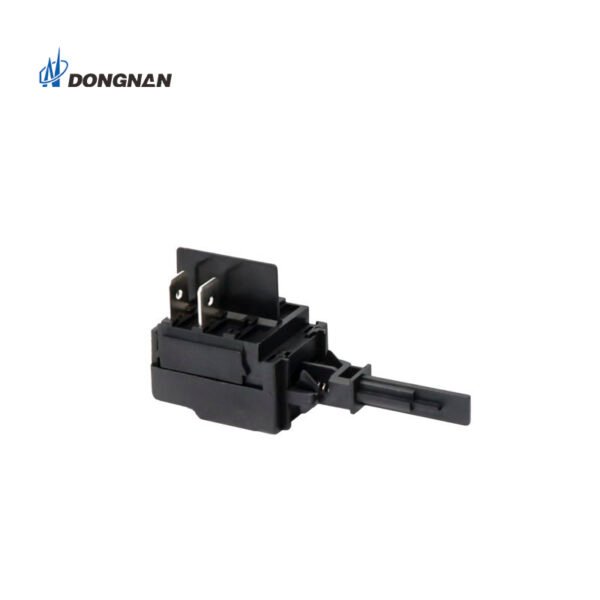

PS5 Dishwasher Main Power Switch

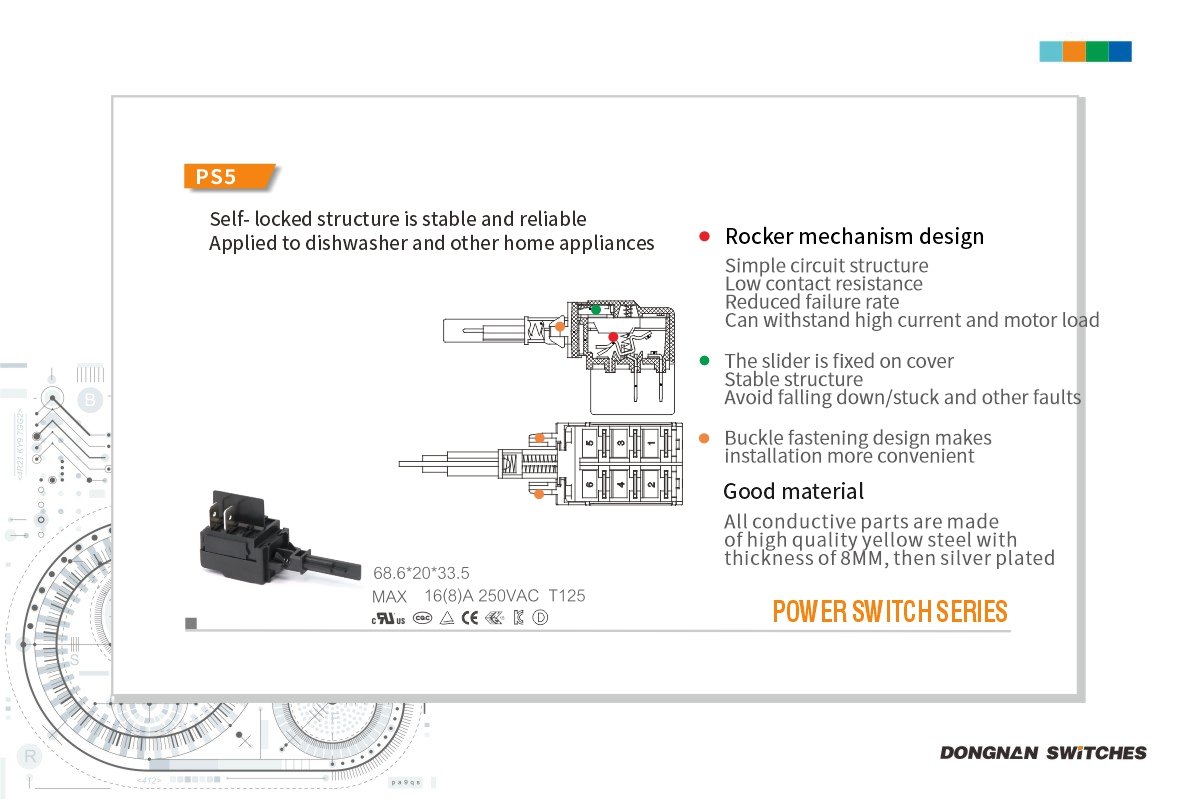

The PS5 power switch is crafted with the utmost care and attention to detail, with each conductive part comprised of high quality yellow steel. With a variety of circuit conversion options available, this technology allows for seamless and effortless toggling of the power switch.
Share This Page
Product Features
-Endure big current and inrush current.
-Widely used in dishwasher and other home appliances etc.
— Its rugged construction and advanced materials allow it to handle high currents without compromising performance or safety.
–The switch is designed to effectively manage the inrush current that occurs when electrical equipment is first powered on, ensuring smooth and stable operation.
— In addition, it has protection measures to prevent damage from overcurrent conditions, thereby increasing its reliability and longevity.
— Able to withstand high currents and effectively manage inrush currents, this power switch is a reliable choice for applications requiring superior electrical resiliency and performance.
Product Parameters
| Item | Value |
| Environment temperature | 0~105°C or 0~125°C |
| Relative humidity | 95%,40°C |
| Operating travel/full | 4.5mm/7.5mm |
| Operating force | 12±2N |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤ 50mΩ |
| (Test voltage) Between each terminals of the same polarity | AC2000V |
| (Test voltage) Between current-carrying metal parts and ground(case), and between each terminal and non-current-carrying metal parts | AC4000V |
| Electrical Life | 10,000 cycles |
| Safety approvals | UL , CUL , ENEC , TUV,DEMKO , NEMKO , CE , CQC |
Company Advantage
Dongnan Electronics is dedicated to providing top-notch products and services to our customers. As such, we have invested in our own class 100,000 cleanroom to ensure a high level of cleanliness and quality control.
Our intelligent dust-free assembly line is equipped with the latest technology, including automatic assembly, testing, and packing. This not only ensures efficiency and productivity but also reduces the risk of errors and defects.
We are committed to providing our high-end customers with the most competitive micro-switches available on the market. Our advanced technology and streamlined processes allow us to offer high-quality products at a reasonable price.
At Dongnan Electronics, we believe in continuous improvement and strive to make our production process more efficient and intelligent. We are constantly researching and developing new ways to enhance our products and services to better serve our customers.
