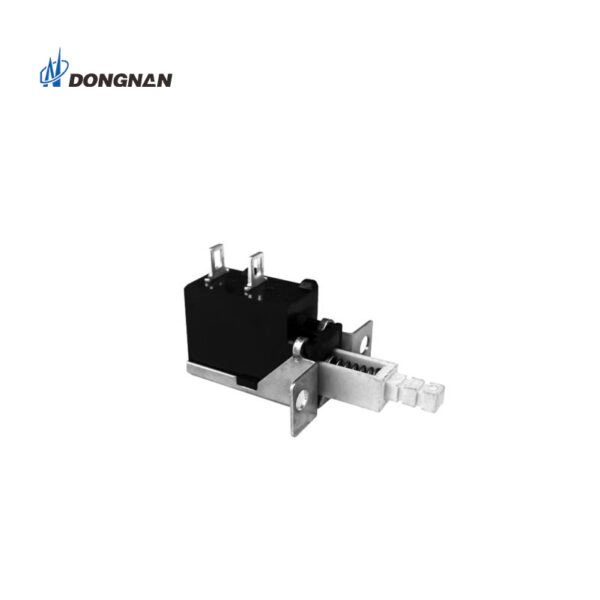

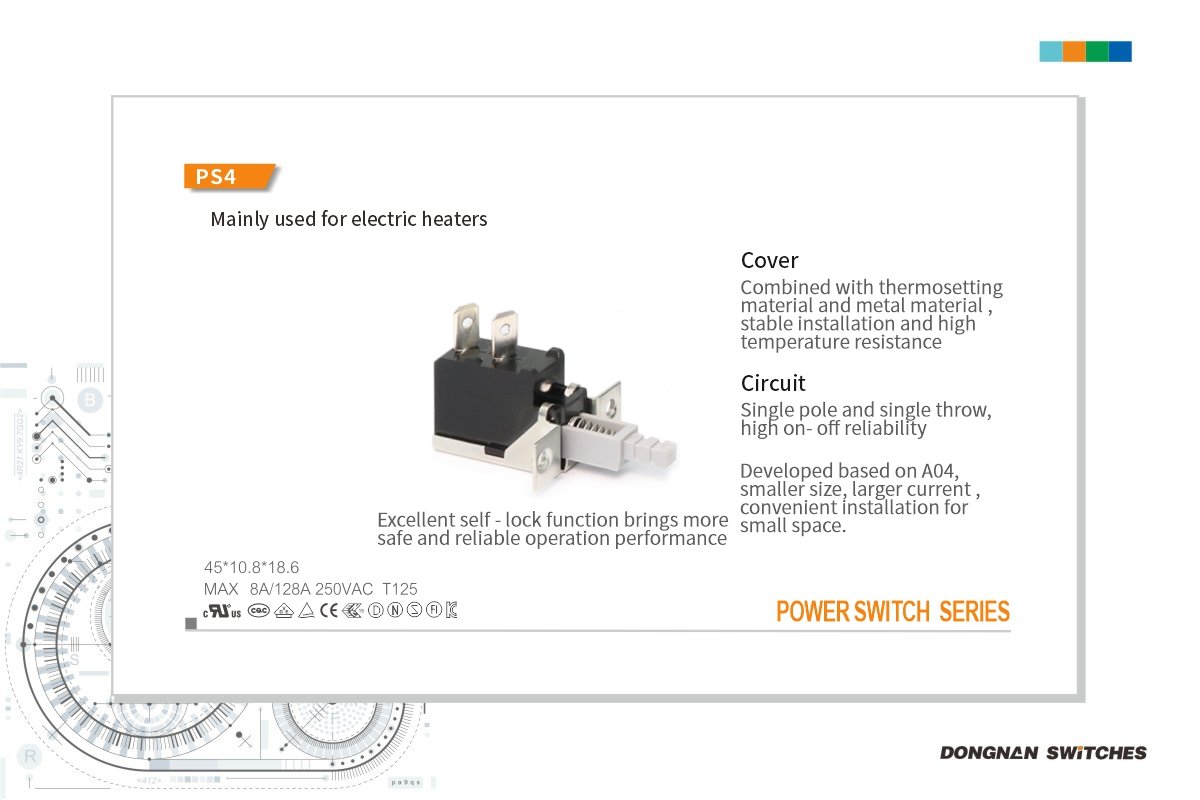

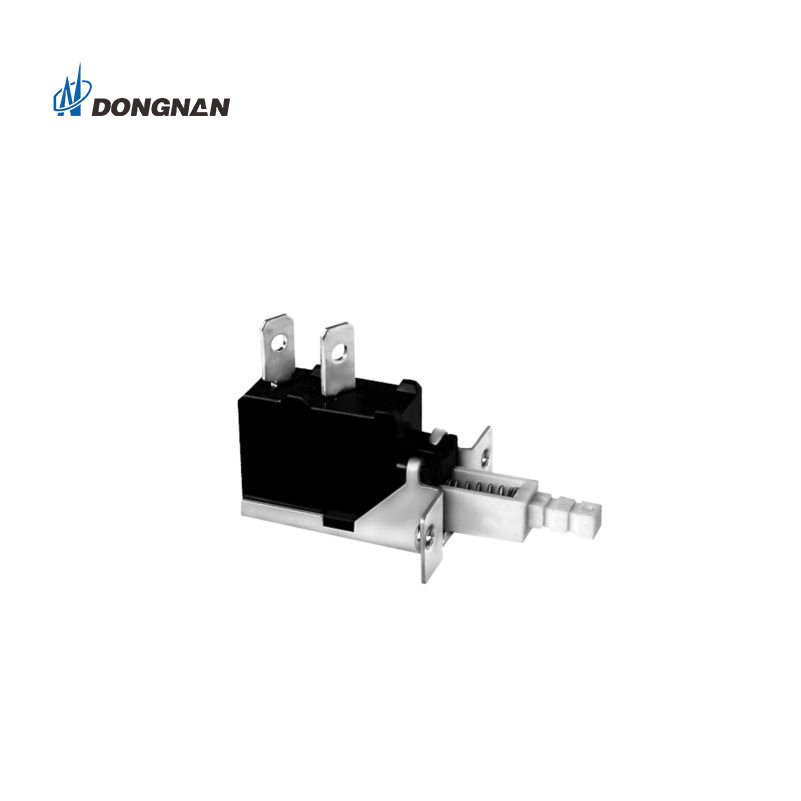

PS4 Push on-off Micro Push Button Switch for Color TV
The PS4 power switch is a compact yet highly efficient electronic component that boasts a wide range of benefits. Designed to provide quick and easy access to the console’s power supply, this switch enables users to power on and off their PS4 with just the touch of a button.
Share This Page
Product Features
-Quick action. Fast-action spring mechanism provides instant response and ensures efficient power control.
-Endure big current and inrush current.
-Long life, high reliability,Durable and reliable
-Widely used in color TV, audio device , computer and its peripheral equipment, apparatus and instrument , electronic equipment etc.
Product Parameters
| Item | Value |
| Environment temperature | -10~+85°C, 0~125°C |
| Relative humidity | 95%,40°C |
| Ratings | TV-5 125VAC , 10GPA125/250VAC , 10A125/250VAC 8A/128A250VAC |
| Operating travel/full | 2.5mm/3.5mm |
| Operating force | 2N~6N |
| Circuit | SPST |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤ 50mΩ |
| (Test voltage) Between each terminals of the same polarity | AC2000V |
| (Test voltage) Between current-carrying metal parts and ground(case), and between each terminal and non-current-carrying metal parts | AC4000V |
| Electrical Life | 10,000 cycles |
| Weight | Approx . 7.8g |
| Sofety approavals | UL , CUL , VDE , ENEC , TUV,SEMKO , DEMKO , NEMKO , FIMKO ,CE , EK , CQC |
Application
One of the key advantages of the PS4 power switch is its speed and responsiveness. Within seconds of pressing the switch, the console will either power up or power down, allowing users to enjoy their favorite games and entertainment without delays or interruptions.
Moreover, the PS4 power switch offers another significant benefit in terms of energy savings. By powering down the console when not in use, users can significantly reduce their energy consumption, saving money on their utility bills and reducing their impact on the environment.
Overall, the PS4 power switch is an excellent tool for any gamer or home entertainment enthusiast.
