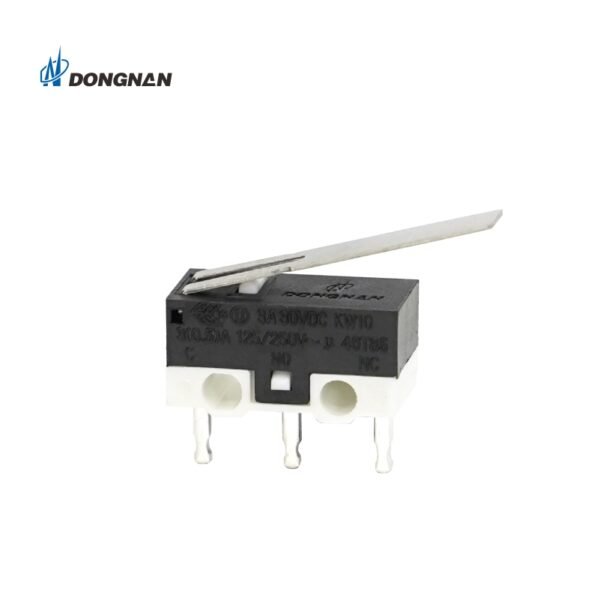

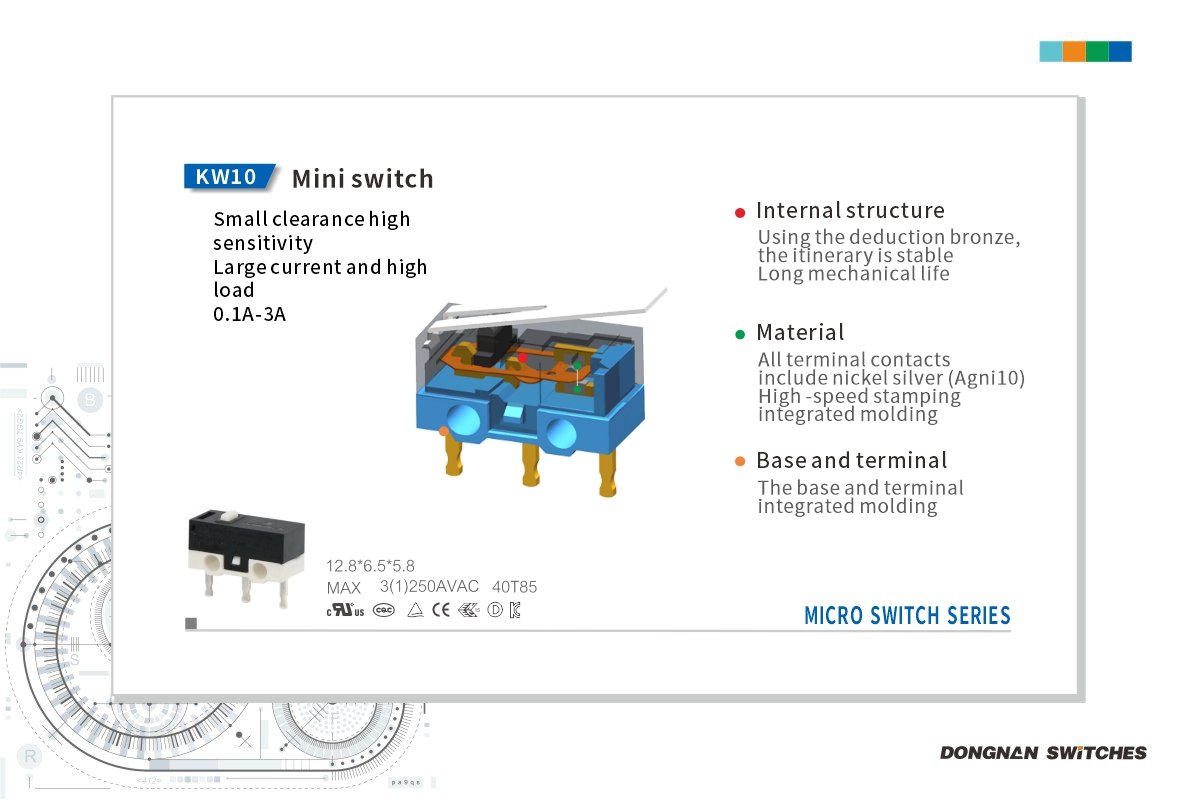

SPDT KW10 Limit Micro Switch Mini Home Appliance
Share This Page
Product Features
-The spdt KW10 Limit Micro Switch is an affordable option for both manufacturers and end users because it has a long lifespan offers dependability and versatility. Because of its sturdy construction and premium components, it can resist everyday wear and tear and continue to operate consistently and dependably for a long time.

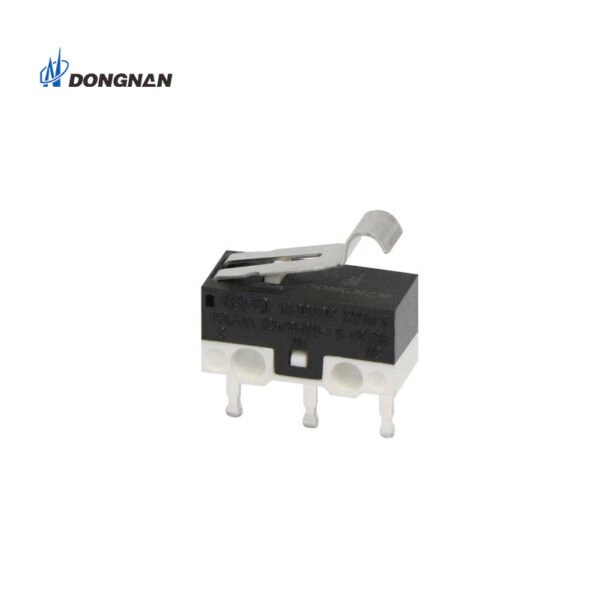

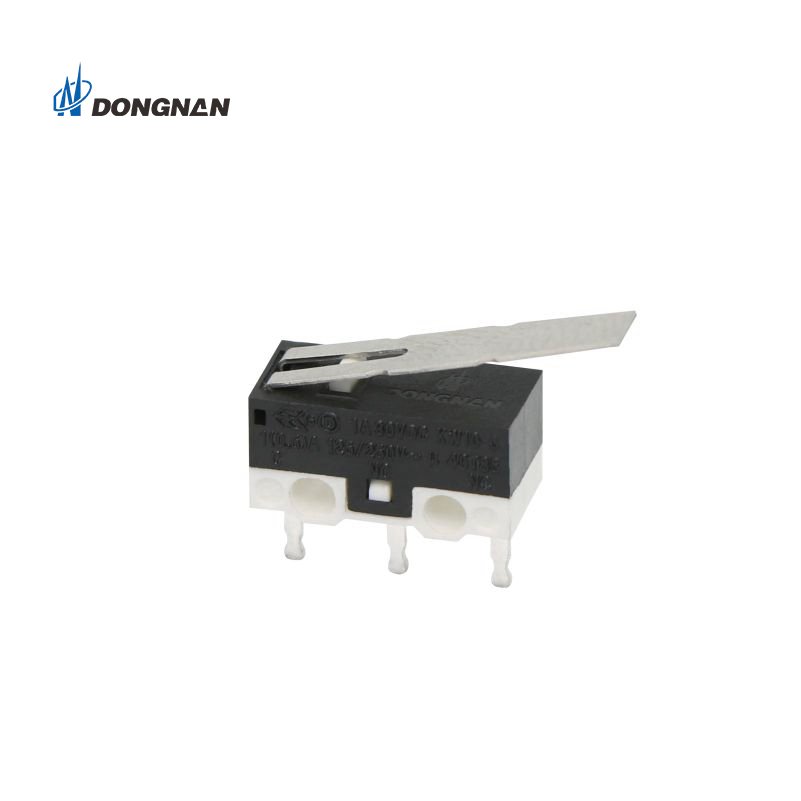

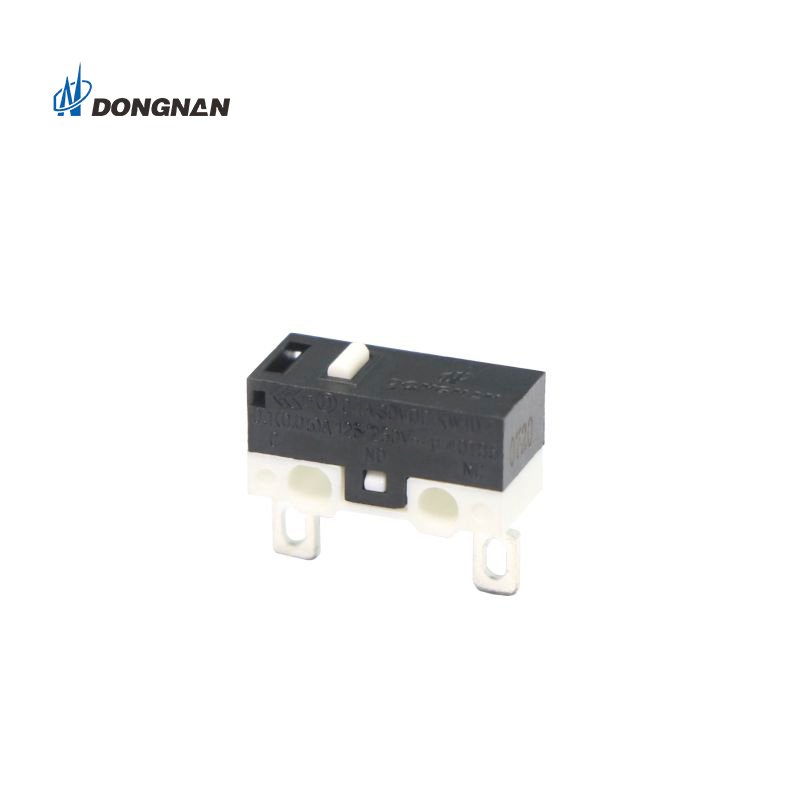

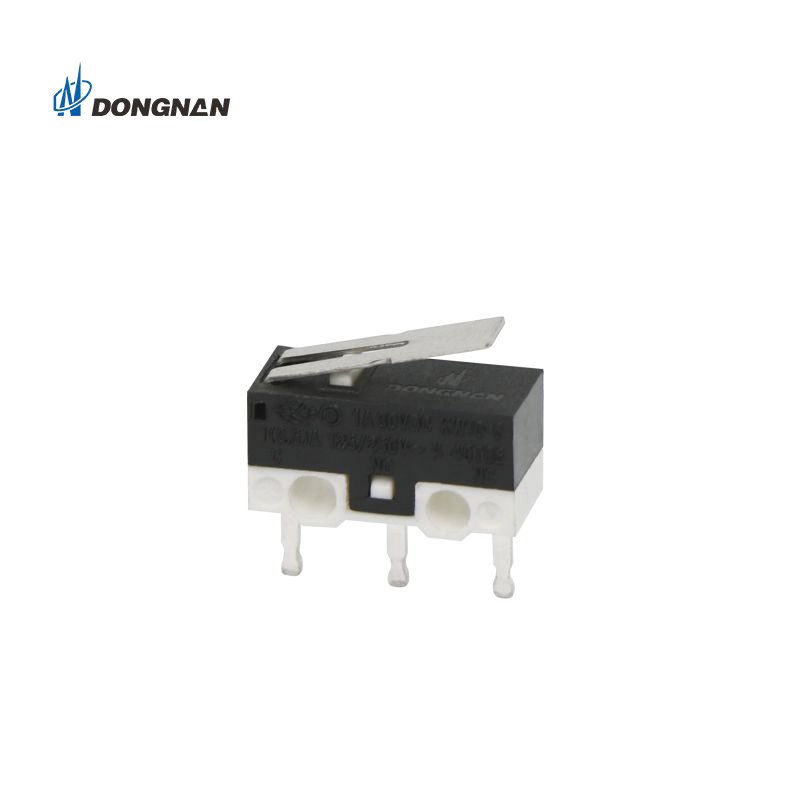

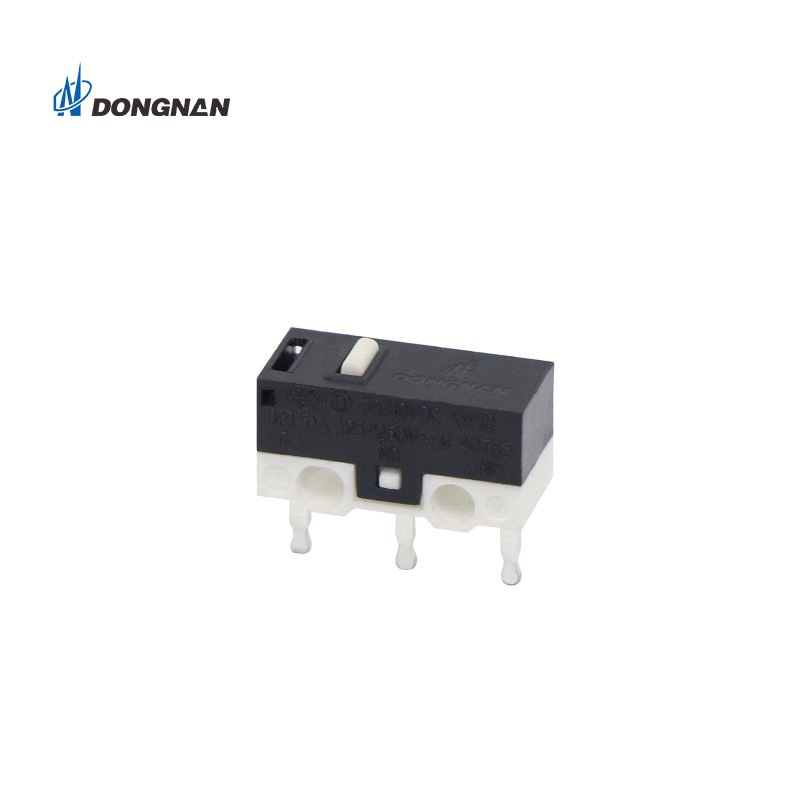

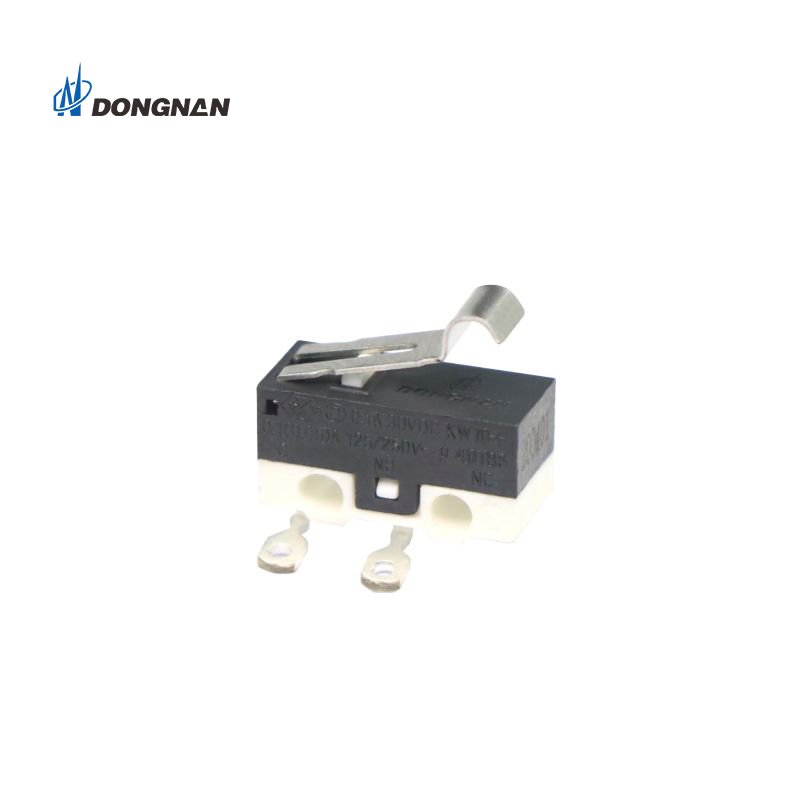

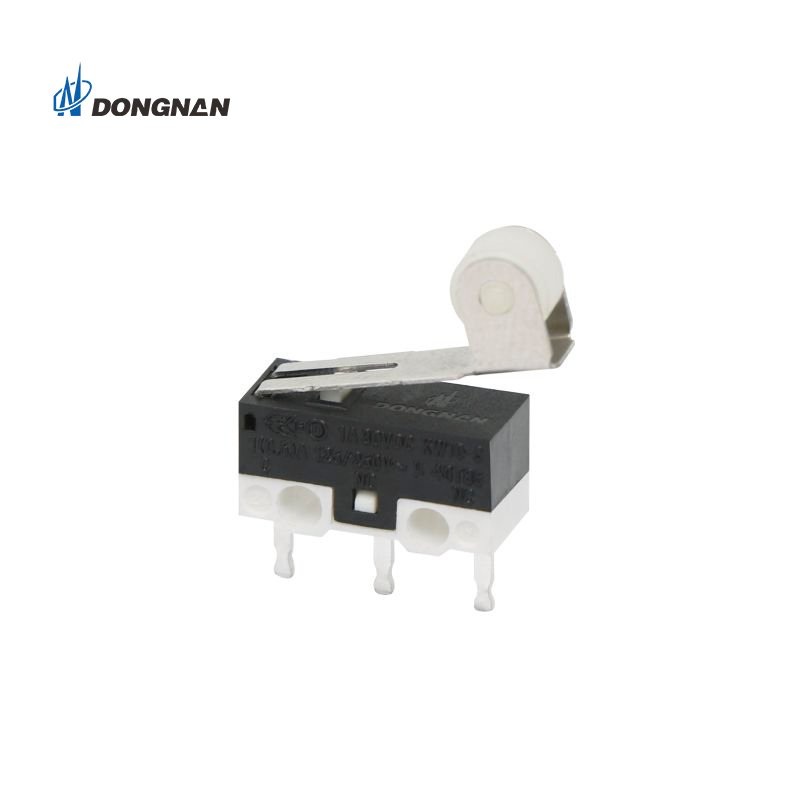

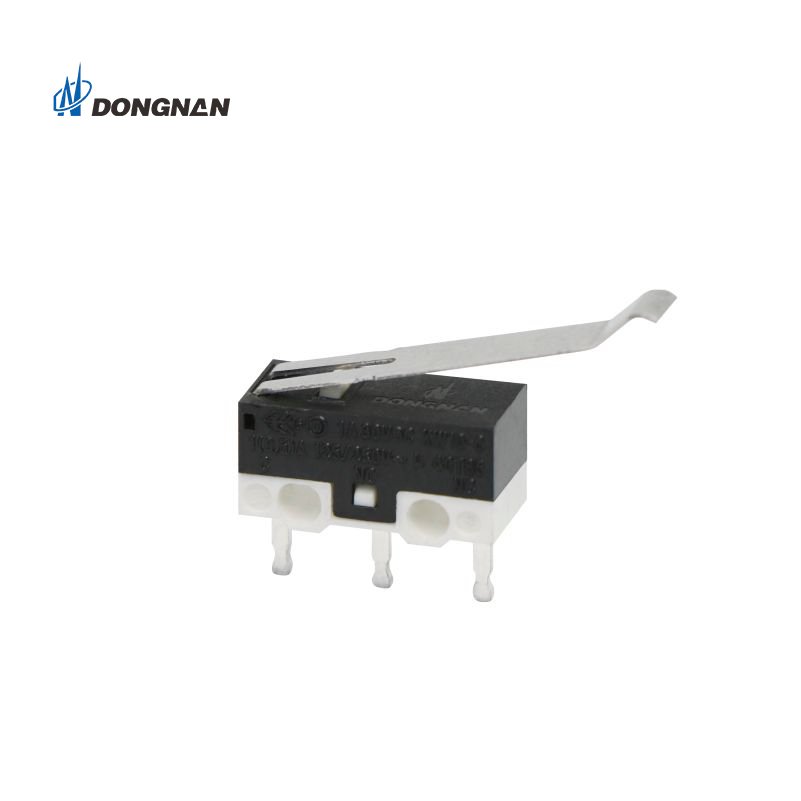

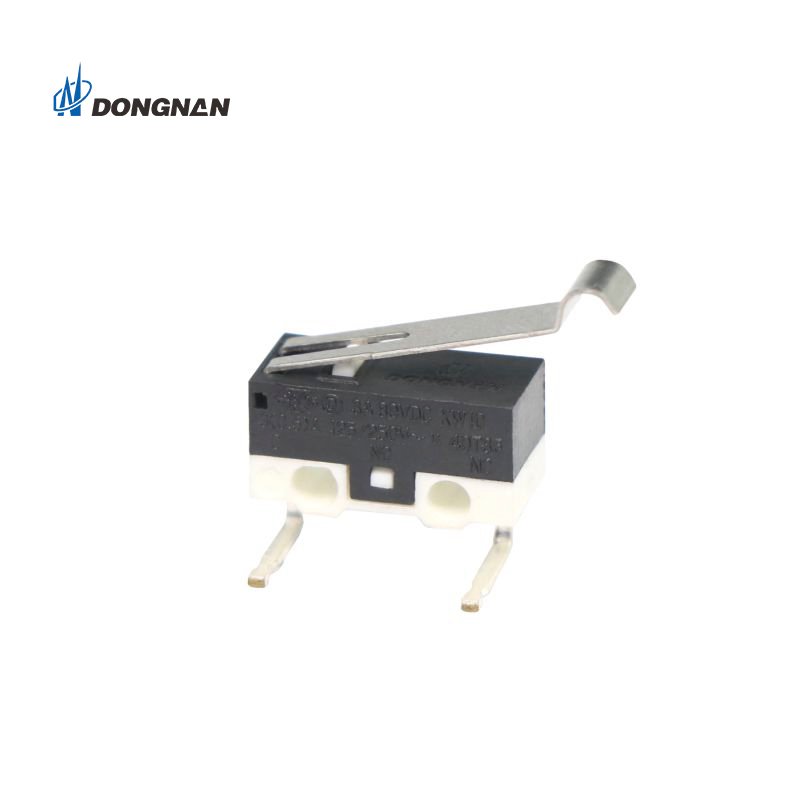

-The KW10 Micro Switch Mini comes with various levers and terminals that can be used in a wide range of devices and systems. This design flexibility makes it a highly adaptable solution for different applications, increasing its appeal to a wide range of industries and use cases.
-In the automotive industry, the KW10 40t85 Micro Switch provides an essential part of the car seat belt, providing vital safety features for driver and passengers. Its miniature size and high current capacity allow it to be ideally suited to this application, ensuring reliable performance and peace of mind on the road.
-In household appliances, the KW10 micro switch can be used in vacuum cleaners as a wall sensor to enhance the device’s navigation and obstacle-detection functions. Its high-quality construction ensures longevity, making it a reliable component in the overall functionality of the device.
Product Parameters
| Item | Value |
| Operating speed | 1mm~500mm/s (Related with actuator forms) |
| Operating frequency | Mechanical 60 cycles/min; electrical 25 cycles/min |
| Insulation resistance | ≥ 100MΩ(500VDC) |
| Contact resistance | OF>0.75N:≤30mΩ
OF≤0.75N:≤50mΩ KW10-D,E,F type:≤1000mΩ |
| (Test voltage) Between terminals of the same polarity | AC600V , 50/60Hz , 1min |
| (Test voltage) Between current-carrying metal parts and ground(case), and between each terminal and non-current-carrying metal parts. | AC1000V , 50/60Hz , 1min |
| Vibration resistance | 10~55Hz , 1.5mm Double amplitude |
| Shock resistance | Malfunction:300m/s2(approx.30G)max |
| Weight | Approx.0.6g(No lever) |
| Life | Mechanical ≥ 1,000,000 cycles
Electrical ≥ 10,000 cycles |
| Safety approvals | UL,CUL,TUV,ENEC,DEMKO,CE,EK,CQC |
