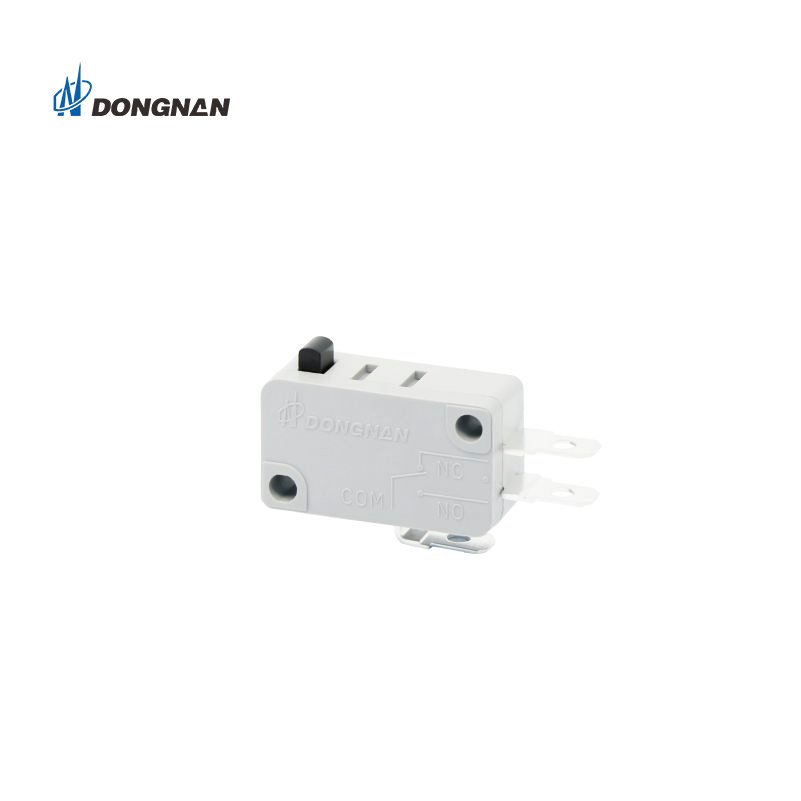

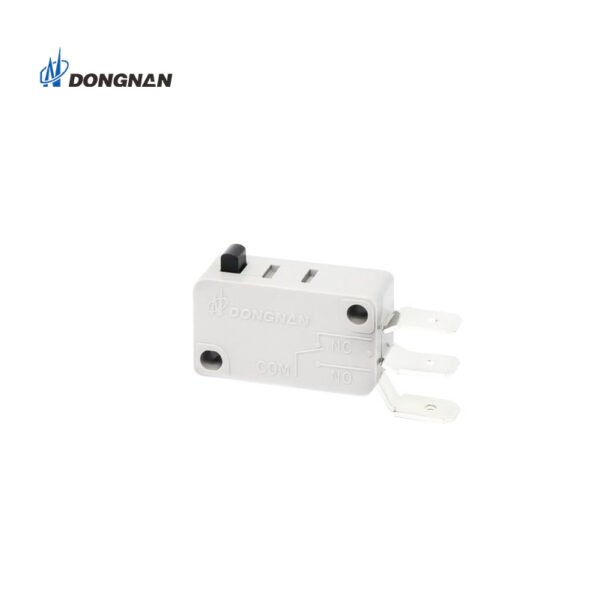

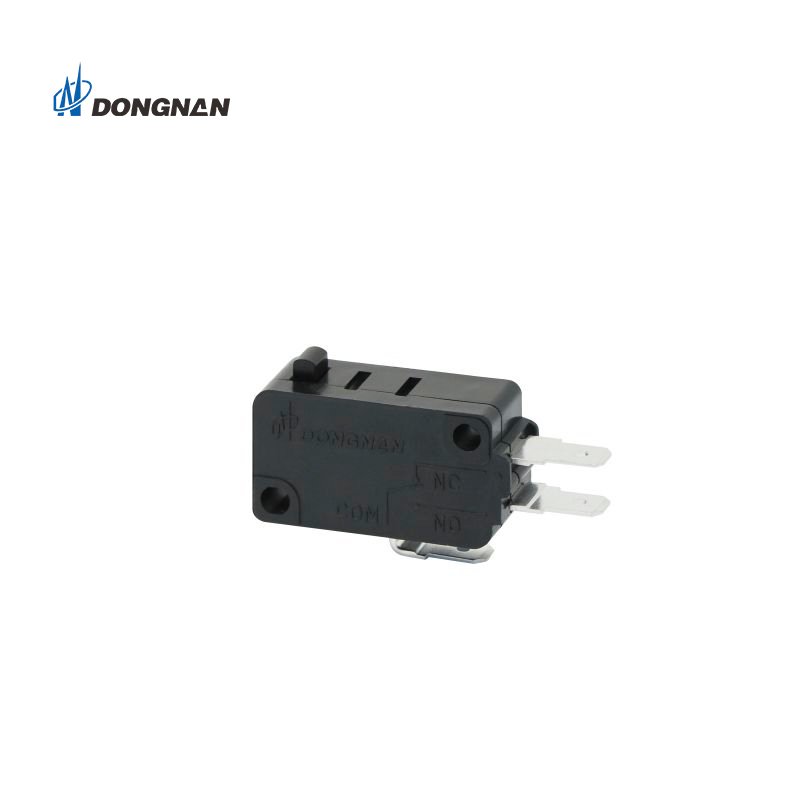

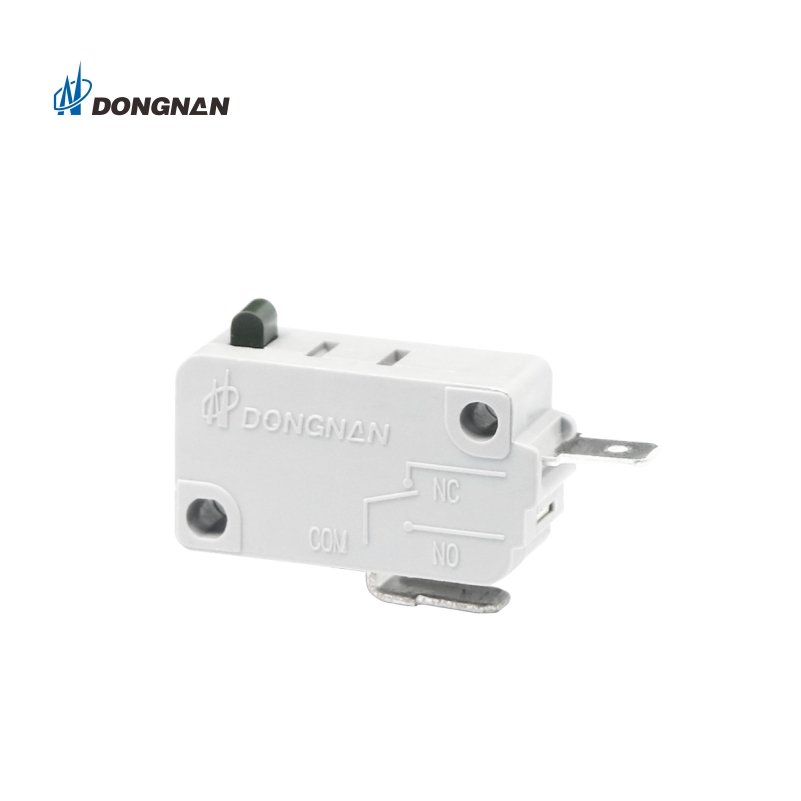

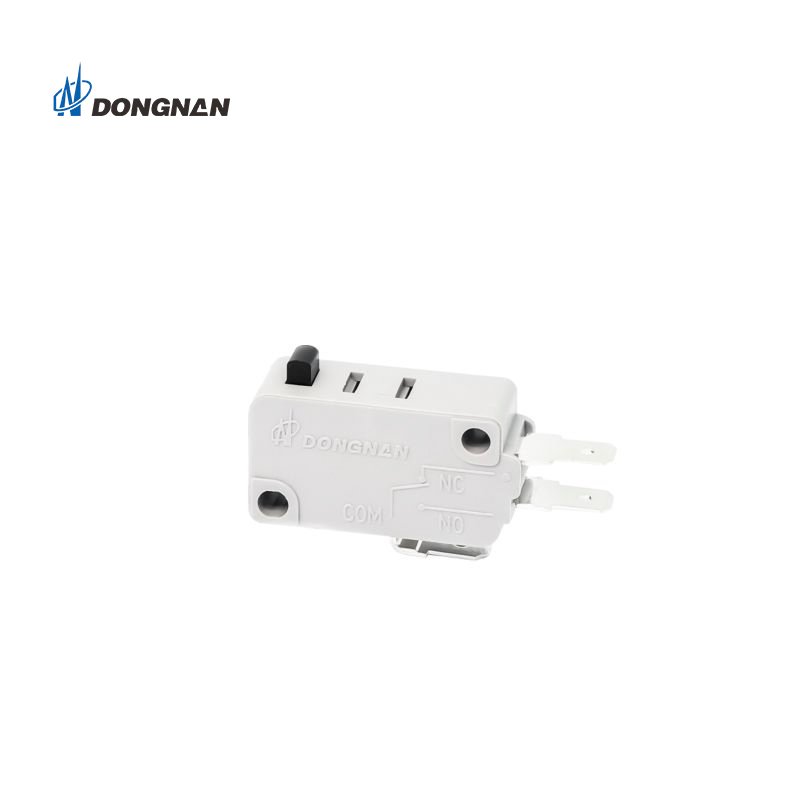

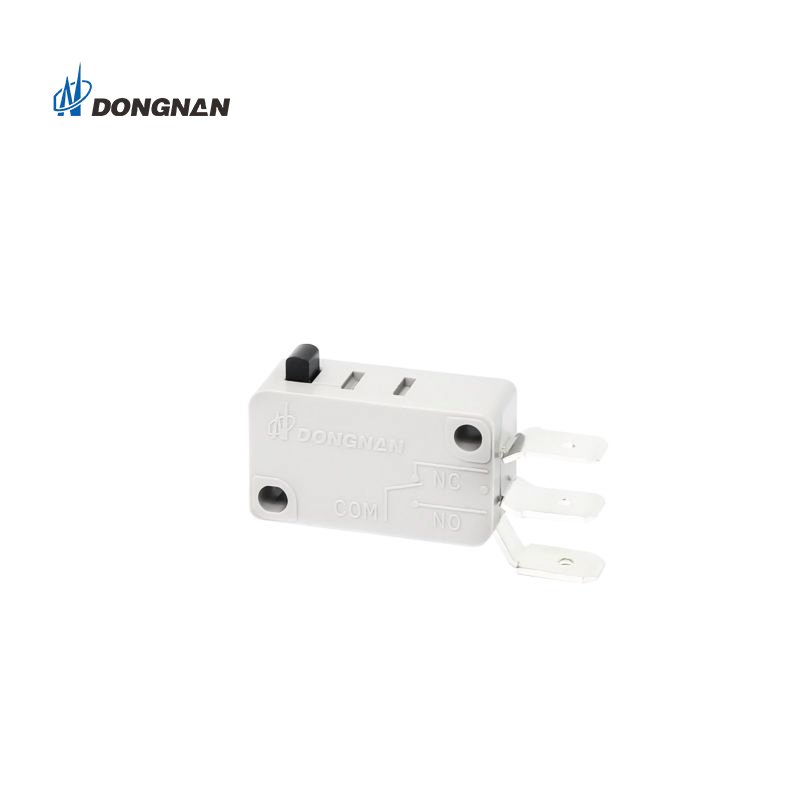

Introducing the Professional Grade High Temperature Snap Action Micro Switch KW3A for All Your Home Appliances
Using high temperature resistance material as a major cover material, the KW3A micro switch can endure high temperature which up to 200℃. It can be used in various home appliances such as microwave, dishwasher,etc.
Share This Page
Product Features
-Safe,reliable basic switch
-Nice appearance,tight configuration.Characteristic:small contact clearance, quick action,high sensitivity and small operating travel.
-Long life,high reliability
-A variety of contact terminals

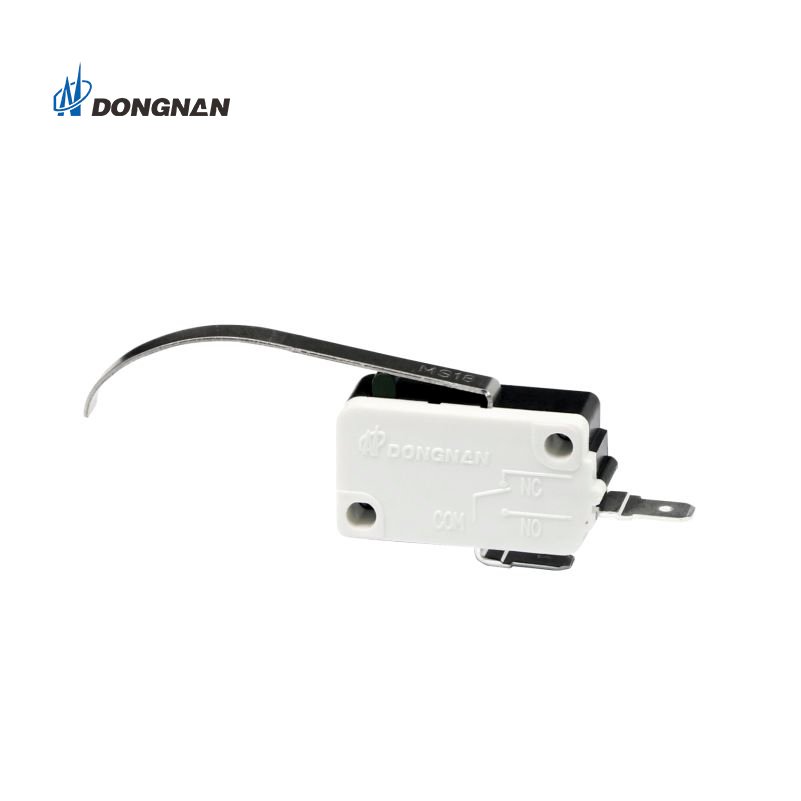

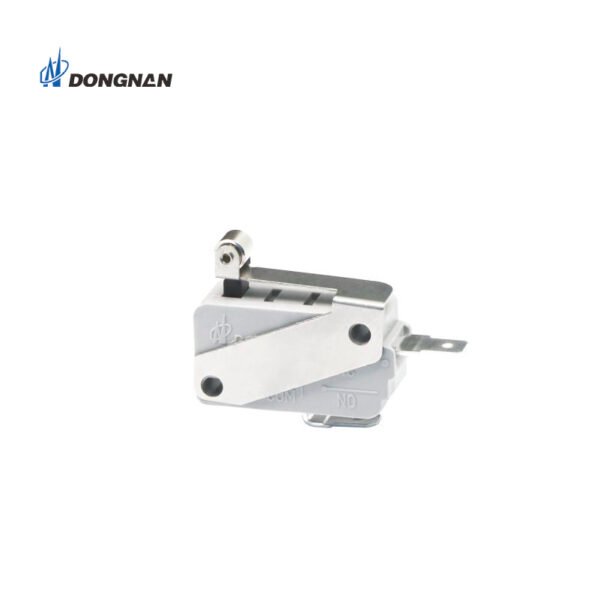

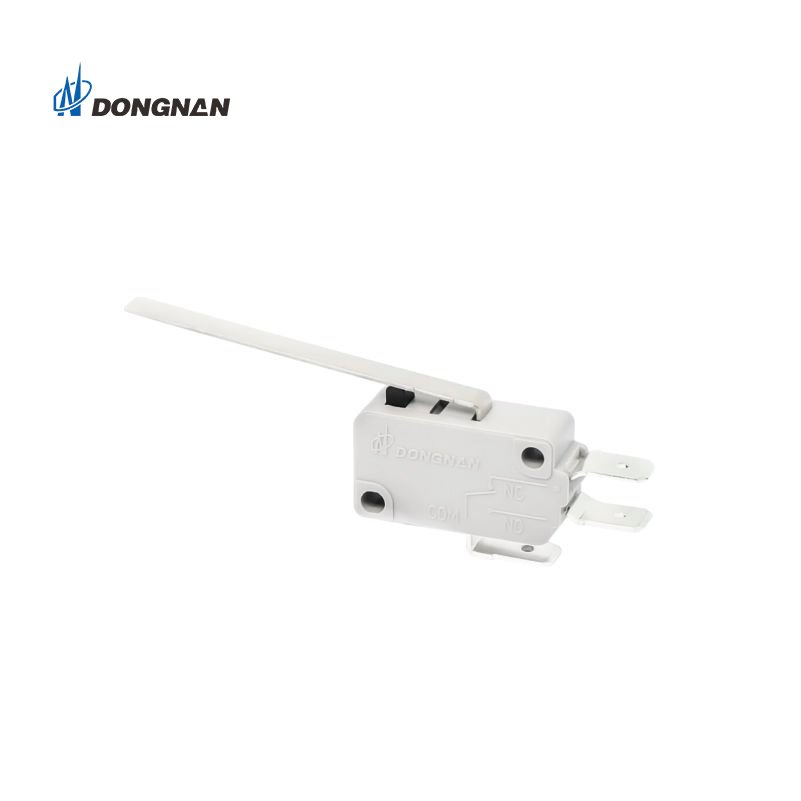

– A variety of levers
-A variety of temperature degree
-Wide range of operating force
-Widely used in home appliance,electronic equipment,automatic machine,communication equipment,car electron,apparatus and instrument, electric motion tool etc.
-Direct current large gap switch can be provided.
Product Parameters
| Item | Value |
| Operating speed | 0.1mm~1m/s (Related with actuator forms) |
| Operating frequency | Mechanical 60 cycles/min; electrical 25 cycles/min |
| Insulation resistance | ≥ 100MΩ(500VDC) |
| Contact resistance | OF>0.75N:≤50mΩ OF≤0.75N:≤100mΩ (initial value) |
| (Test voltage) Between terminals of the same polarity | AC1000V , 50/60Hz , 1min |
| (Test voltage) Between current-carrying metal parts and ground(case), and between each terminal and non-current-carrying metal parts. | AC3750V , 50/60Hz , 1min |
| Vibration resistance | 10~55Hz , 1.5mm Double amplitude |
| Shock resistance | Destruction:OF>0.5N:1000m/s2(approx.100G)max OF≤0.5N:400m/s2(approx.40G)max Malfunction:OF>0.5N:200m/s2(approx.20G)max OF≤0.5N:100m/s2(approx.10G)max |
| Weight | Approx.6.2g(No lever) |
| Life | Mechanical ≥ 2,000,000 cycles Electrical ≥ 50,000 cycles |
| Safety approvals | UL,CUL,VDE,ENEC,SEMKO,DEMKO,NEMKO,FLMKO,
CE,EK,CQC |
Application
KW3A micro switch which is a basic micro switch features higher current and higher temperature selection compared to other micro switches. Adaptable to a variety of household appliances, it is widely used in microwave ovens. Not only does it act as a main power switch, but it can also act as a door control switch, which is very powerful.
The KW3A micro switch also has a larger current selection range and can carry a larger current, so it is very convenient to use in some high-power household appliances. In addition, its high-temperature selection range also makes it difficult to damage in high-temperature environments, more durable and reliable.
