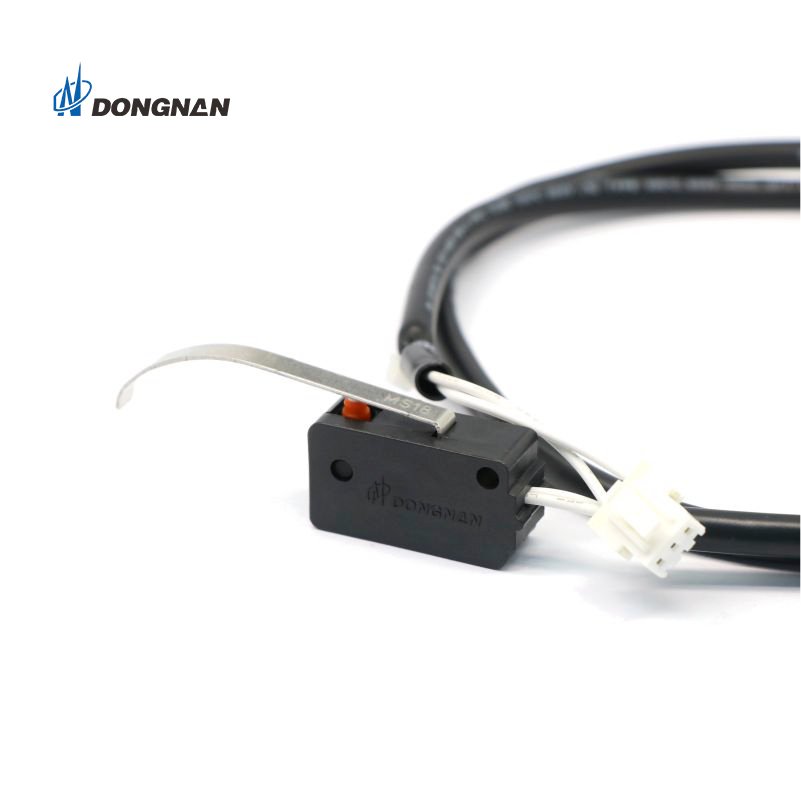

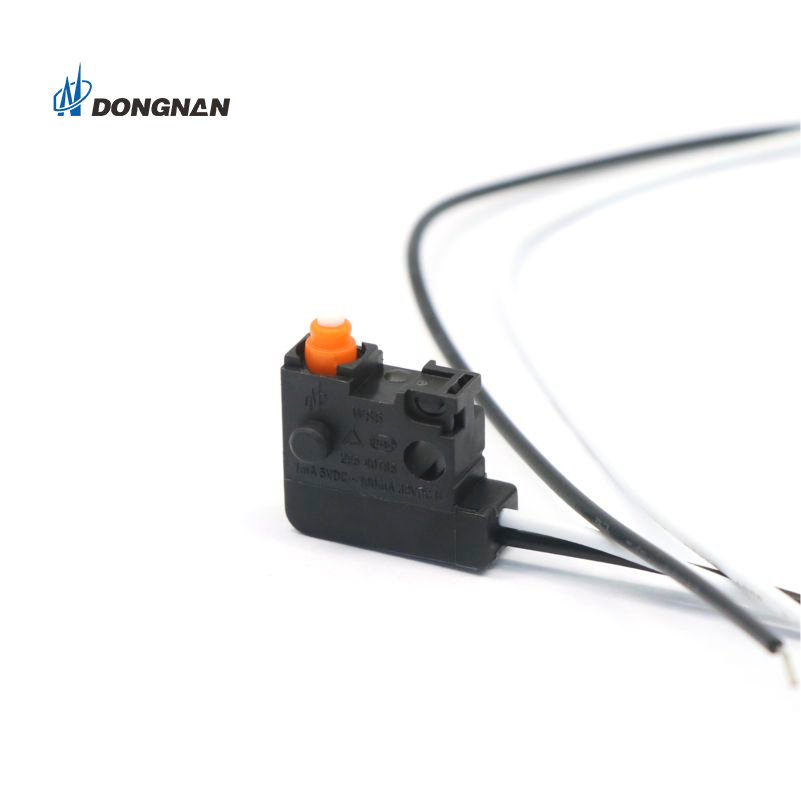

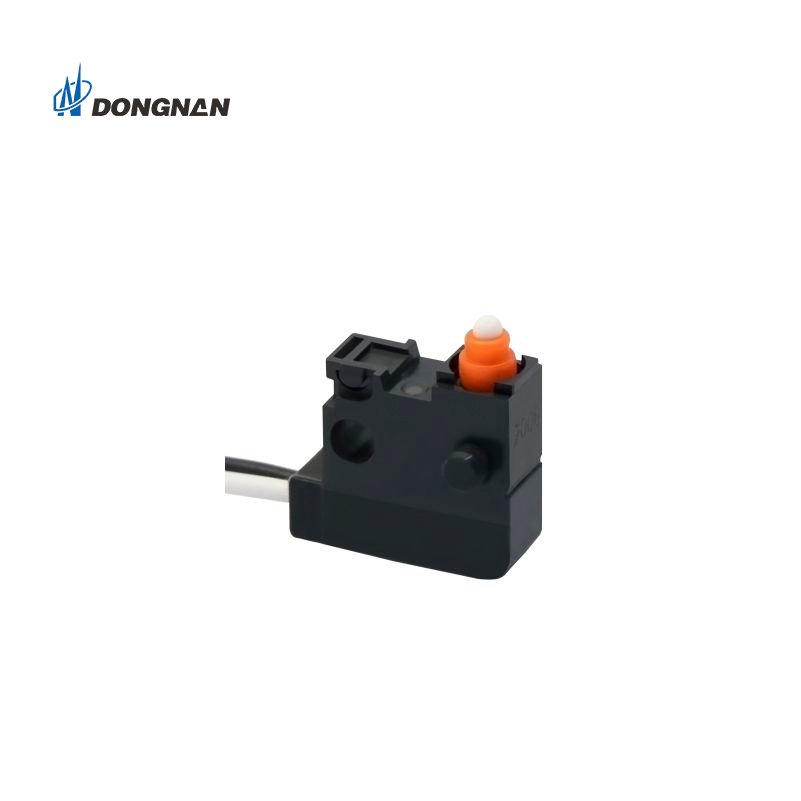

Explosion Proof WS6 Micro Switch Water proof Applied to Car Lock System

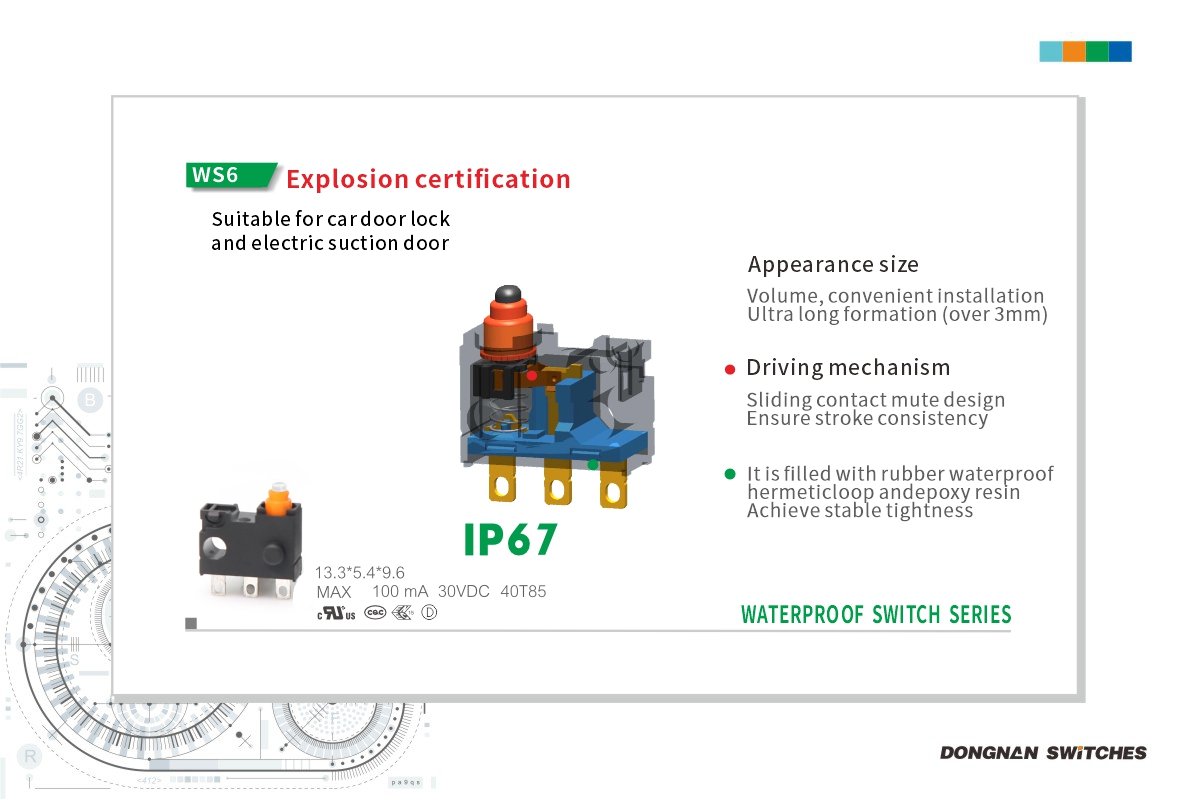

Explosion Proof WS6 waterproof micro switch is certified as explosion-proof, which is safer. Moreover, a sliding contact mute structure can minimize the noise generated by the switch in the process of use. Equipped with various terminals to choose from.
Share This Page
Product Features
-To be stably sealed by sealed rubber ring and epoxy resin. Can be used in wet or dusty places.
-Switch over travel more than 2mm.
-Mute structure of sliding contact.

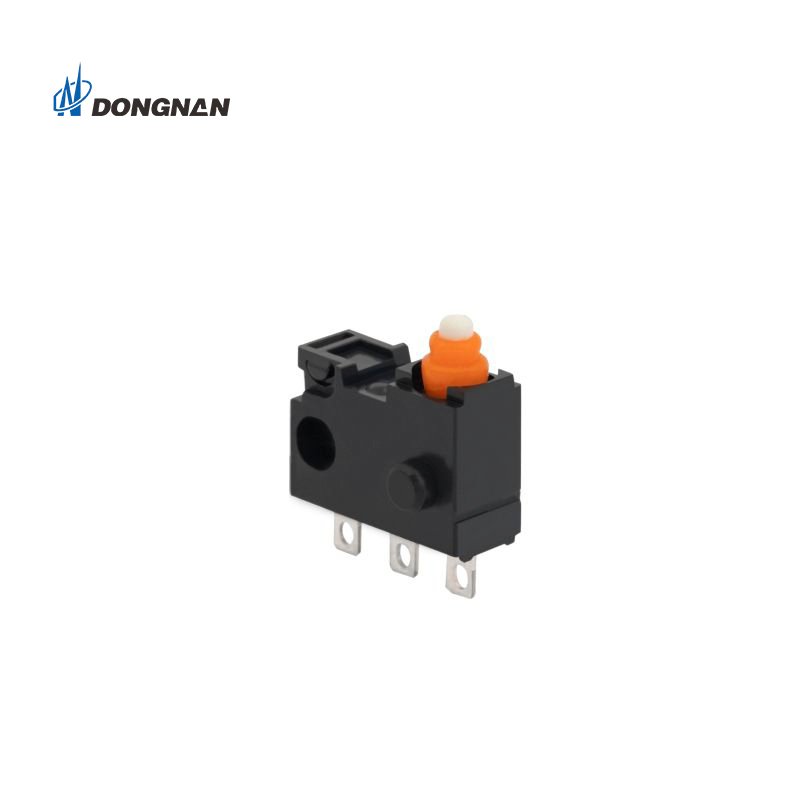

-A variety of contact terminals,provide with a variety of wires.

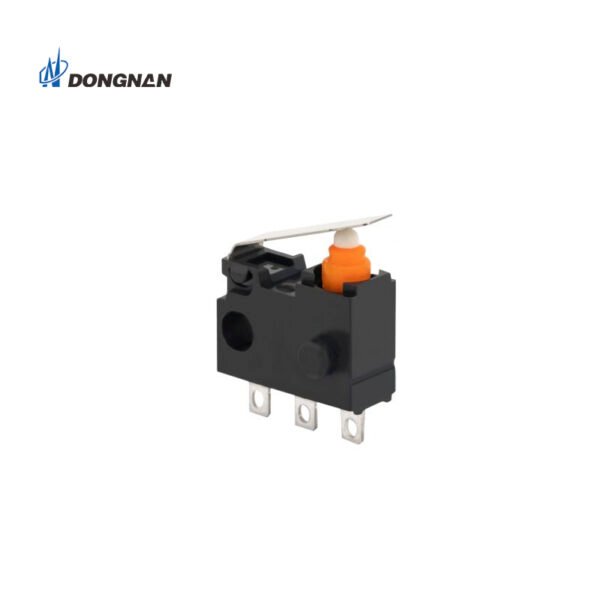

-A variety of levers
-Can be used in environment resistant requirements application such as automobile, agricultural machine, large home appliances, office equipment etc.
Product Parameters
| Item | Value |
| Environment temperature | -40~+85°C |
| Operating speed | 30mm~600mm/s (no lever) |
| Operating frequency | Mechanical 60 cycles/min; electrical 25 cycles/min |
| Insulation resistance | ≥100MΩ(500VDC) |
| Contact resistance | ≤ 500mΩ |
| (Test voltage) Between non-continuous terminals | AC600V , 50/60Hz , 1min |
| (Test voltage) Between each terminal and other exposed metal parts Between each terminal and ground |
AC1500V , 50/60Hz , 1min |
| Vibration resistance | 10~55Hz , 1.5mm Double amplitude |
| Shock resistance | endurance:1000m/s2(approx.100G)max Wrong action:300m/s2(approx.30G)max |
| Electric shock proof protection grade | I class |
| Case protection degree | IEC IP67(Besides terminal part of terminal type) Or other grades |
| Electrical Life | ≥ 500,000 cycles(1mADC5V,50mADC16V) ≥ 200,000 cycles(50mADC 30V) |
Applications
In some luxury cars, they are equipped with electric suction doors. The main purpose is to bring the half-locked or unlocked car door to the full-locked state.WS6 can be applied to the electric suction door. During rainy days, automobile doors are constantly in a humid environment. Humidity is a decisive factor for the switch function. The excellent waterproof ability of a single WS6 waterproof micro switch allows the electric door to maintain the usability of the switch even in the state of water ingress.
