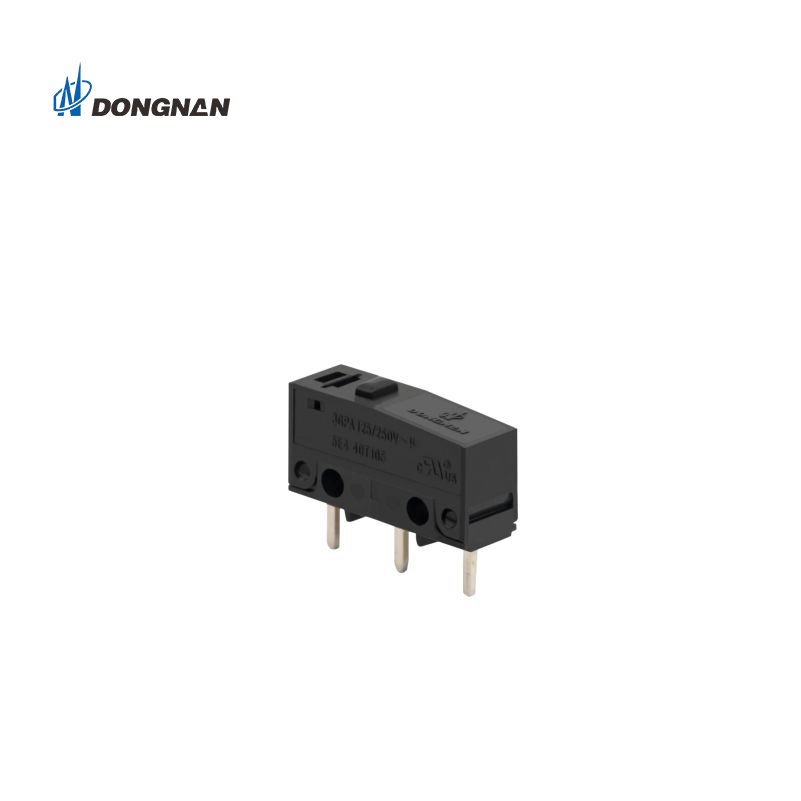

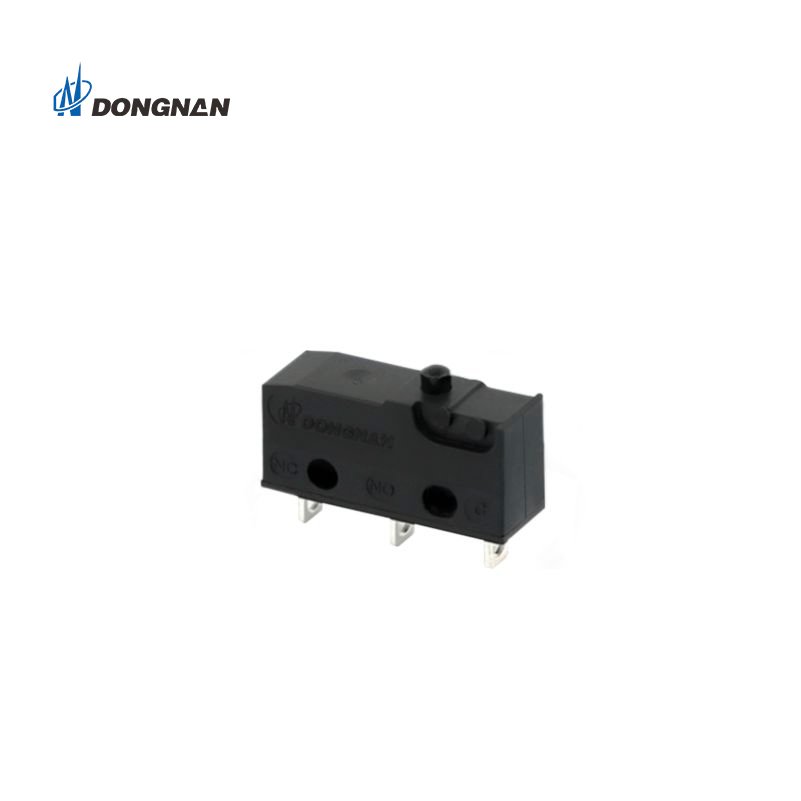

IP40 DONGNNA Dust-proof Mini Microswitch Limit Switches Company
Share This Page
Product Features

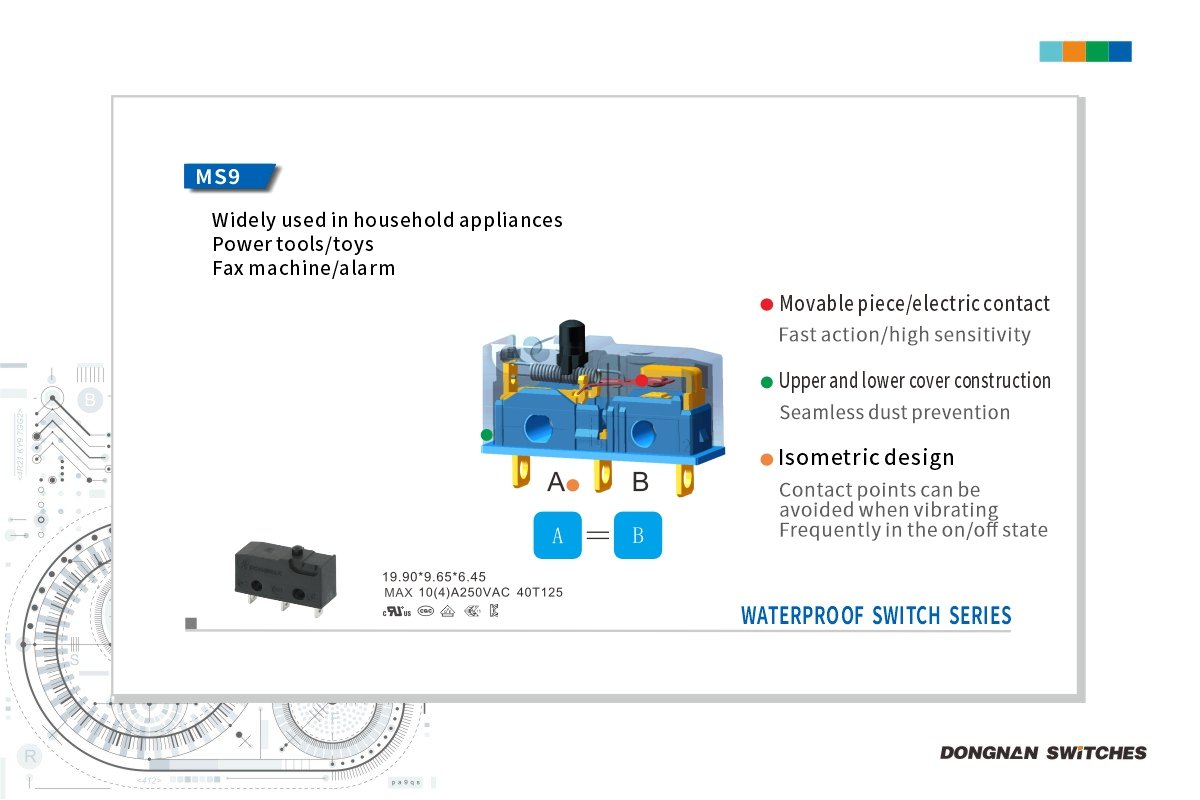

-Compact structure, stable and reliable contact, widely used in home appliances, power tools, toys, fax machines and alarms.
-Switch over travel more than 0.6mm.
-Point contact is stable and reliable.
-A variety of contact terminals, provide with variety kinds of wire.

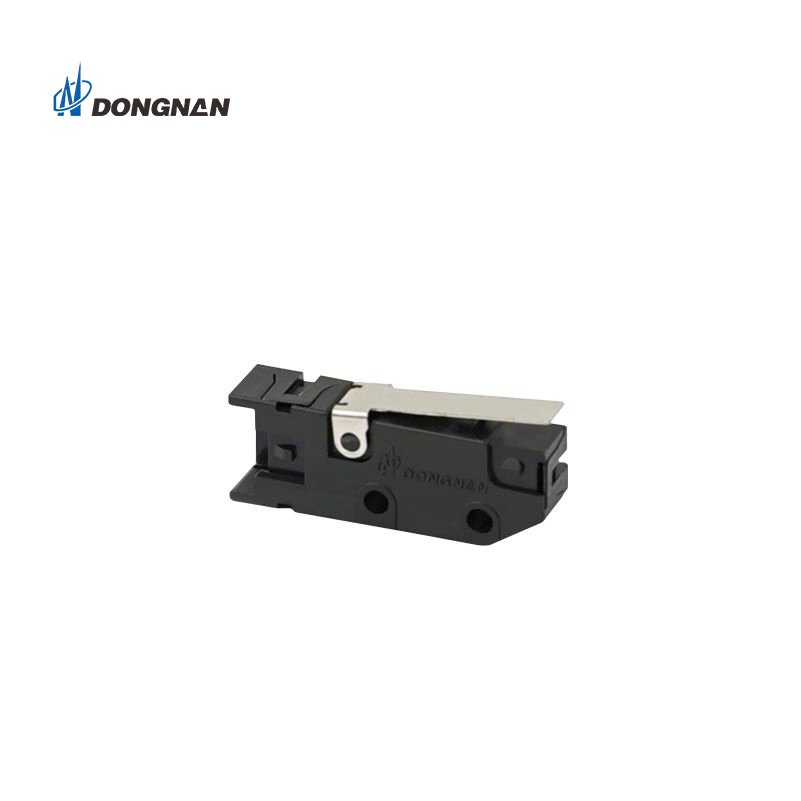

-Variety of levers.
Product Parameters
| Item | Value |
| Environment temperature | -40~+125ºC |
| Operating speed | 30mm-600mm/s(No lever) |
| Operating Frequency | Mechanical 60 cycle/min; Electrical 25 cycles/min |
| Insulation resistance | ≥ 100MΩ(500VDC) |
| Contact resistance | ≤50mΩ |
| (Test voltage) Between terminals of the same polarity | AC1000V,50/60Hz,1min |
| (Test voltage) Between current-carrying metal parts and ground (case),and between each terminal and non-current-carrying metal parts. | AC1500V,50/60Hz,1min |
| Vibration resistance | 10-55Hz,1.5mm Double amplitude |
| Shock resistance | endurance:1000m/s2(approx.100G)max Wrong action:300m/s2(approx.30G)max |
| Degree protection provided by enclosure | IEC IP40 |
| Electrical life | ≥10,000 cycles or ≥50,000c cycles |
| Mechanical life | ≥1000,000 cycles |
Product Parameters
Microswitches are alarm-triggering devices, when the alarm detects an abnormal situation, it will trigger the alarm signal to be issued through the micro switch.
In many alarms, micro switches are also used to control the switching of the power supply. When the alarm is in working condition, the micro switch turns on the power so that the alarm can work normally; when the alarm detects an abnormal situation and sends out an alarm signal, the microswitch will automatically disconnect the power to prevent the power from being wasted.
In some advanced alarms, micro switches are also used to adjust the sensitivity of the alarm. By adjusting the pressure or stroke of the micro switch, the response speed and sensitivity of the alarm to abnormal situations can be changed.
