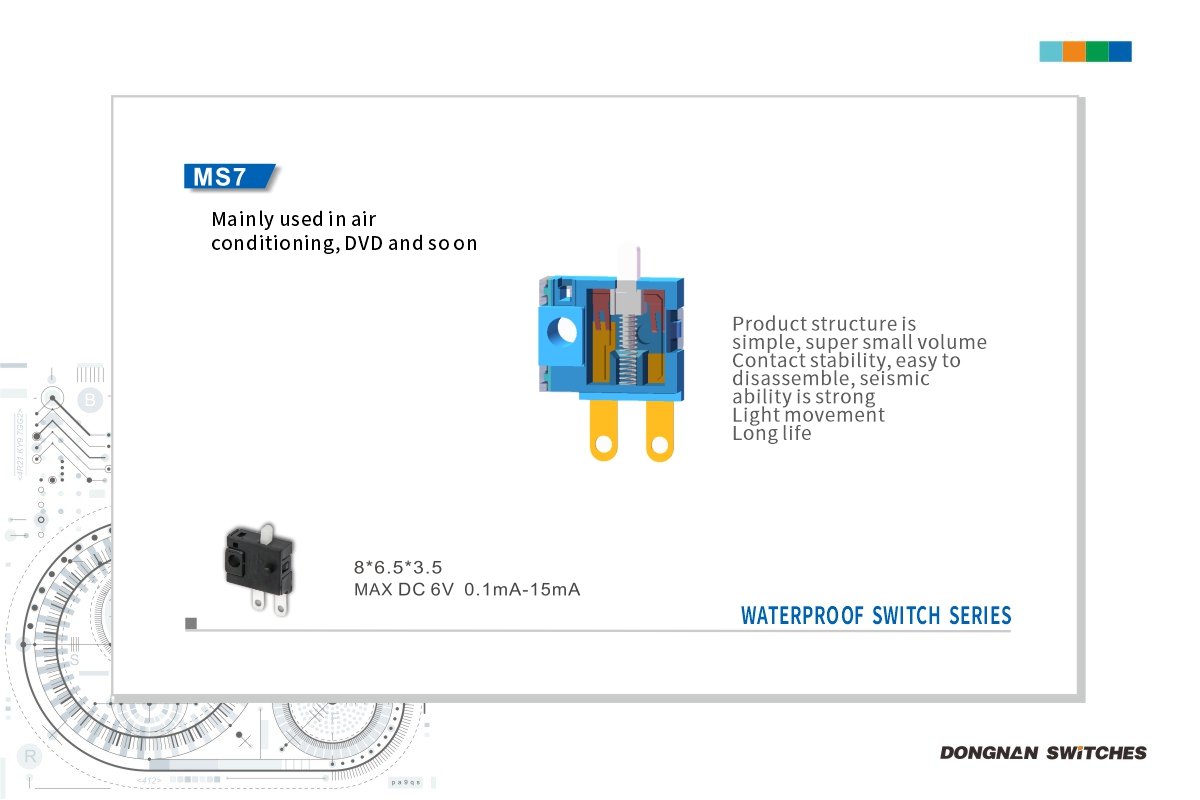

MS7 Customized Low Voltage Micro Switch Used In Air-conditioner
Share This Page
Product Features
-Contact stability, Mini-type,easy to disassemble,strong anti-seismic ability.
-Can be used in home appliances and other fields.
Product Parameters
| Item | Value |
| Operating speed | 0.1mm~1m/s(No lever) |
| Operating Frequency | Mechanical 60 cycles/min; Electrical 25 cycles/min |
| Insulation resistance | ≥100MΩ(500VDC) |
| Contact resistance | ≤50mΩ |
| (Test voltage) Between terminals of the same polarity | AC660V,50/60Hz, 1min |
| (Test voltage) Between current-carrying metal parts and ground(case), and between each terminal and non-current-carrying metal parts. | AC1500V, 50/60Hz , 1min |
| Vibration resistance | 10~55Hz , 1.5mm , double amplitude |
| Shock resistance | Endurance: 1000m/s2(approx.100G)max Wrong action :300m/s2(approx.30G)max |
| Electric shock proof protection degree | II class |
| Life | Mechanical≥500,000 cycles Electrical≥250,000 cycles |
Application
MS7 micro switch plays the role of control and switching circuit in air conditioning. When the user selects different modes and temperatures through the air conditioning panel, the MS7 microswitch switches the corresponding circuit according to the user’s operation, thus controlling the operating state of the air conditioning. Through the function of the micro switch, the air conditioner can realize the switching of different modes such as cooling, heating, air supply, and temperature regulation.
