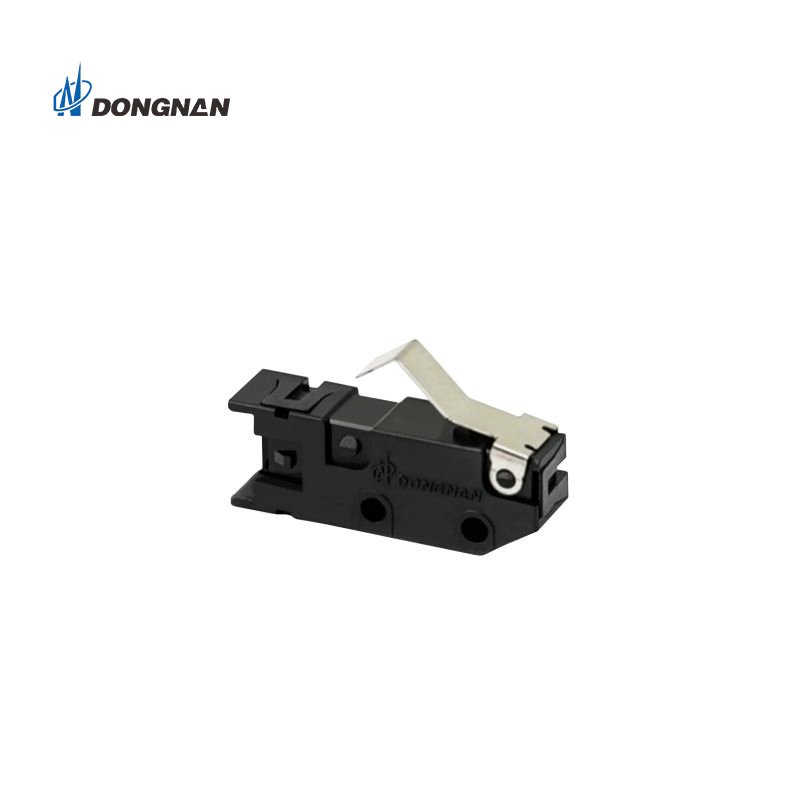

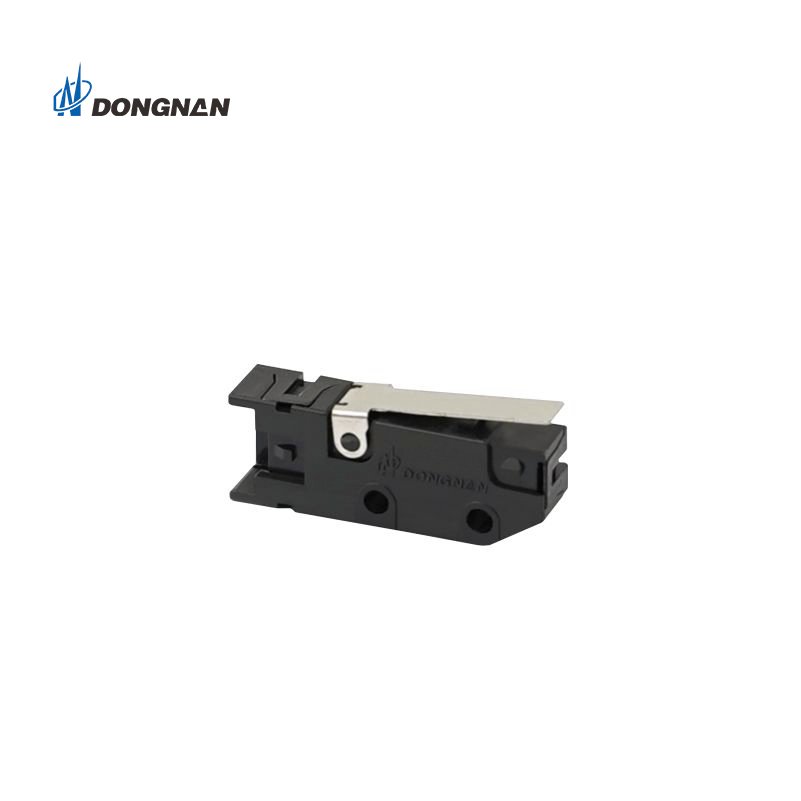

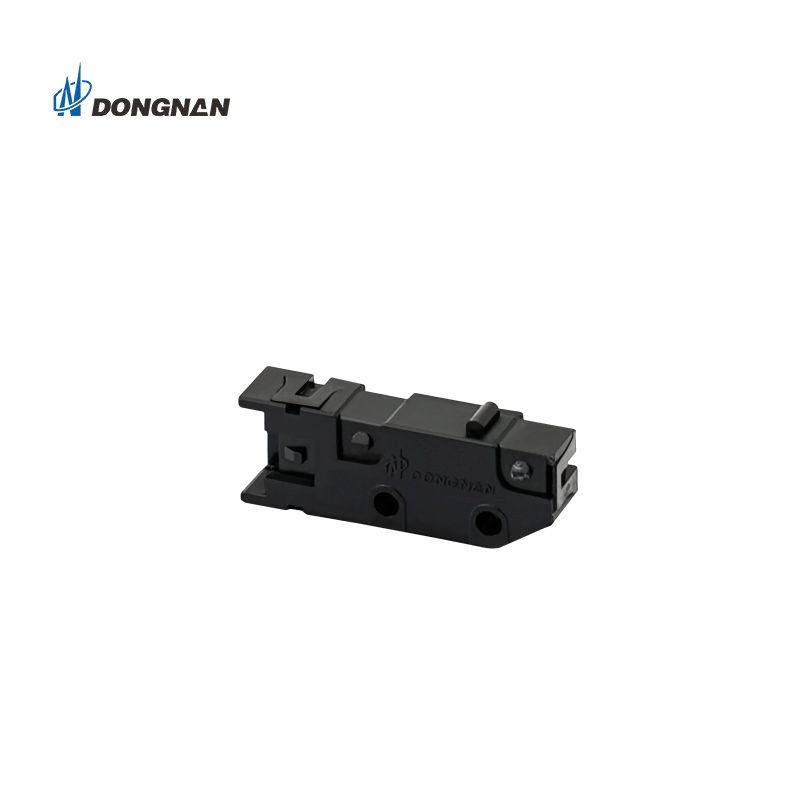

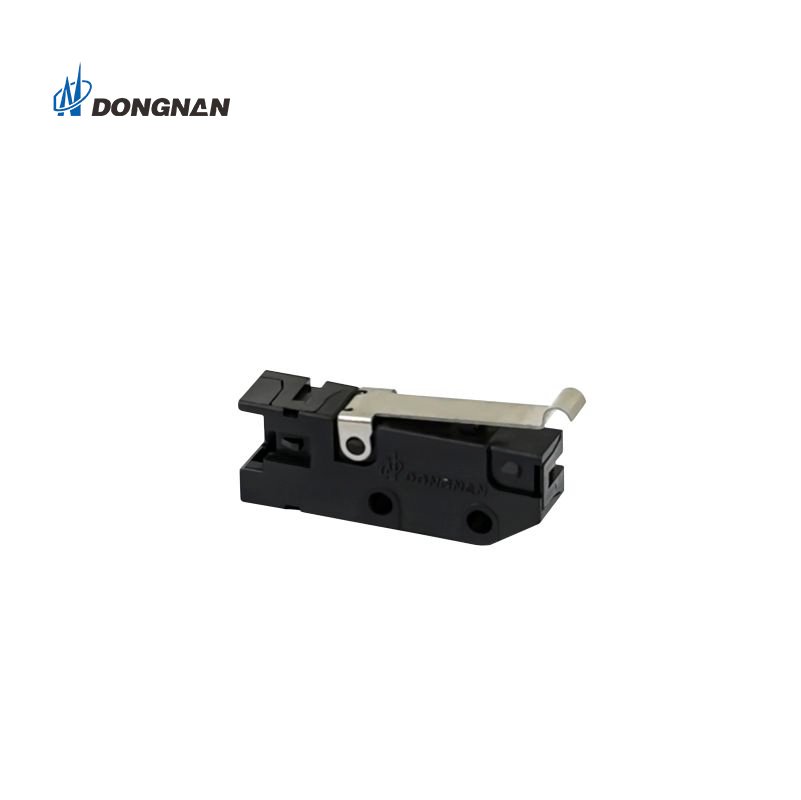

Child Seat Electronic Micro Switch 5A/250VAC
Share This Page

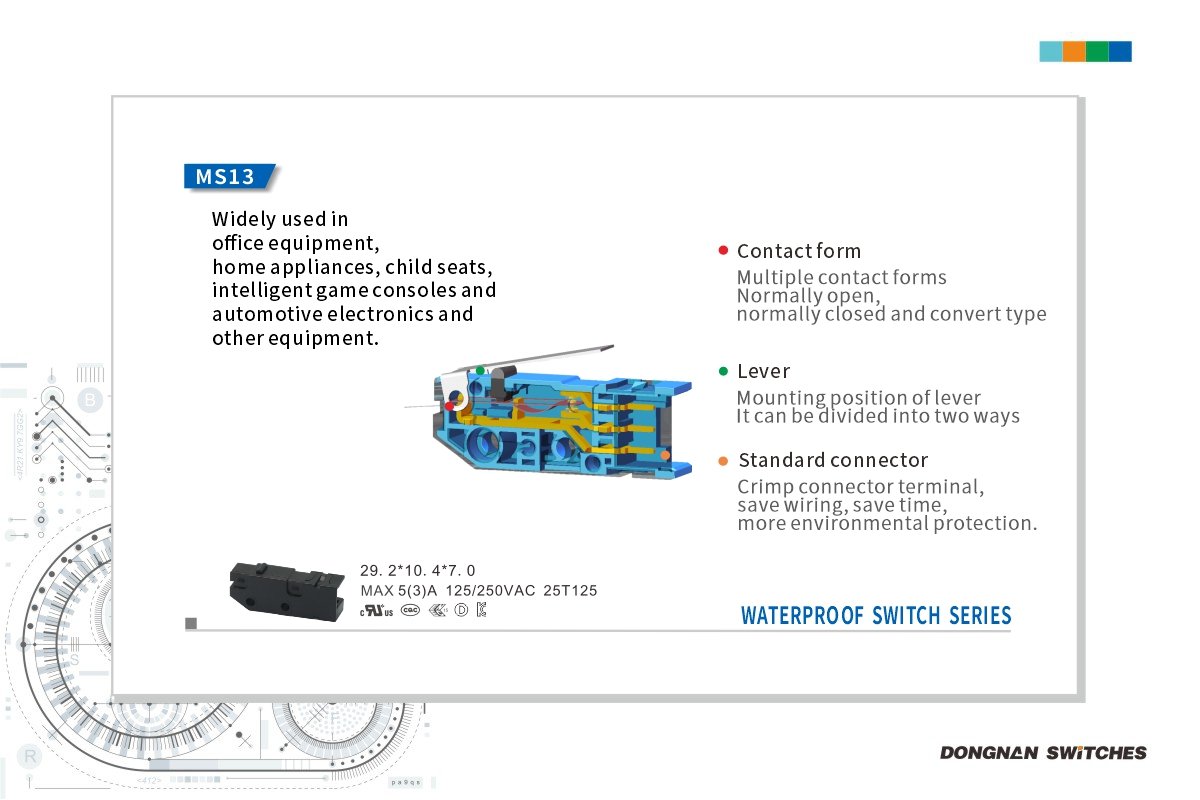

Product Features
-The terminal used for crimping connector can save wiring, man-hour and more environmentally.
-0.1 to 0.5A types are rich in variety and various contact forms.
-With two different mounting holes and various auxiliary operating handles, it can adapt to a variety of mounting methods.
-The installation spacing is consistent with KW4A(S) series and can be used interchangeably.
-Widely used in office equipment, home appliances, child seats, intelligent game machines and automotive electronics and other equipments.
Product Parameters
| Item | Value | |
| Operating speed(No load) | 0.1mm-1m/s(Needle button position) | |
| Insulation resistance | ≥ 100MΩ(500VDC) | |
| Contact resistance | ≤100mΩ(Initial value) | |
| (Test voltage) Between terminals of the same polarity | AC1000V,50/60Hz,1min | |
| (Test voltage) Between current-carrying metal parts and ground (case),and between each terminal and non-current-carrying metal parts. | AC1500V,50/60Hz,1min | |
| Vibration resistance(Misoperation vibration) | Single amplitude 0.75mm,10Hz~55Hz(The contact gap is less than 1ms) | |
| Connector locking force | ≥20N (Pull out direction under static load) |
|
| Connector insertion and removal times |
|
|
| Protection degree | IP40 | |
| Mechanical life | ≥500,000 cycles(Operating Frequency 60 cycles/min) | |
| Electrical life | ≥50,000 cycles(Operating Frequency 15 cycles/min) | |
| Weight | Approx.2.5g(Button type) | |
| Safety approvals | UL,CUL,TUV,CE,CQC |
Application
In modern families, the stove has become one of the indispensable cooking tools in daily life. The ignition switch of the cooker is the key component to control the gas on and off, and its performance directly affects the safety and convenience of the cooker. In order to meet the needs of various application scenarios, MS13 micro switch was born, by its multiple mounting methods and a wide range of current from 0.1A-5A, it has become the ideal choice for the ignition switch of the cooker.
